KIM LIGHTING

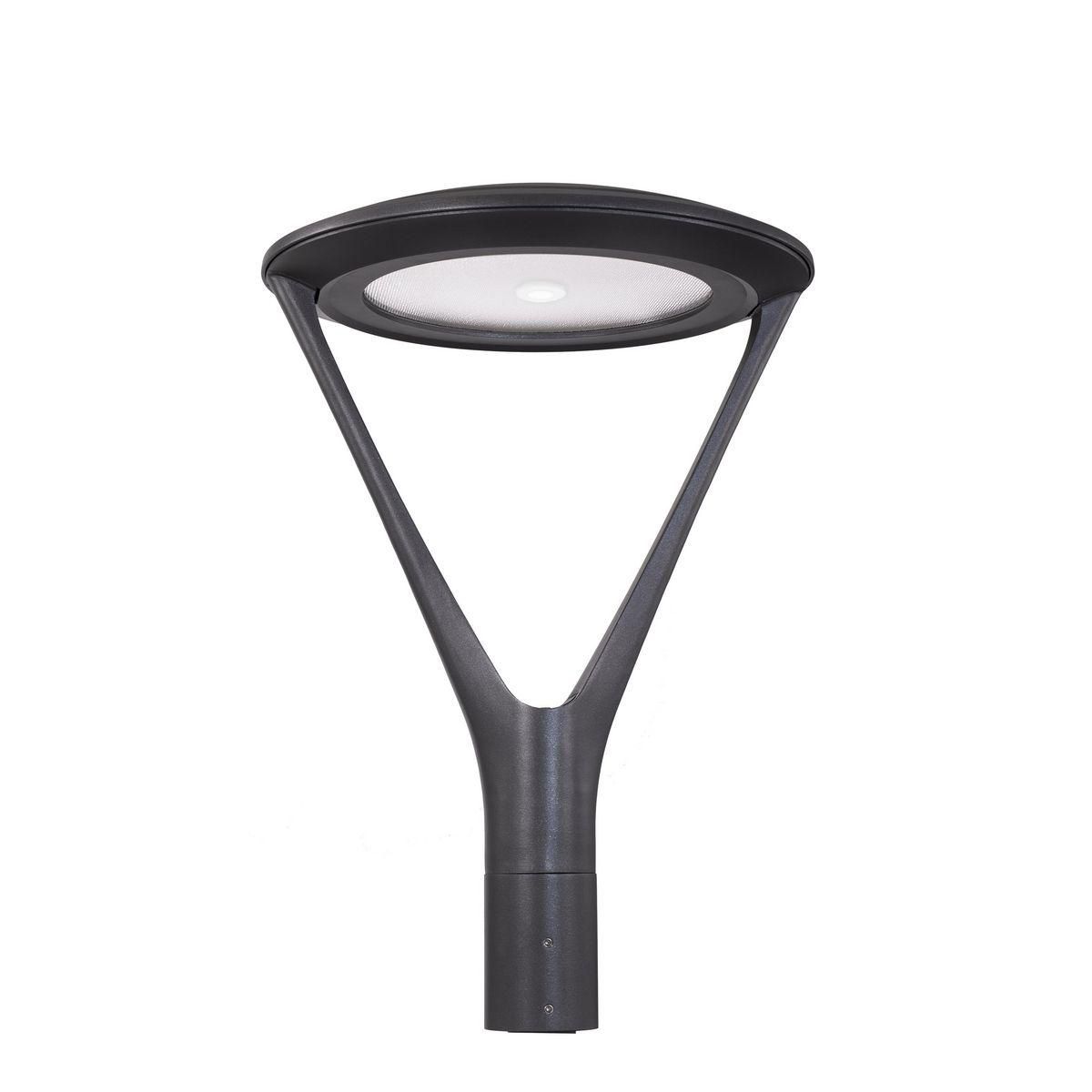

Ouro Edge-Lit Post Top

The Ouro Edge-Lit is part of the Ouro family of luminaires. Ouro Edge-lit enhance the site by day and provides visual comfort and security by night.

Features & Benefits

  • Edge-Lit light guide for low glare, no hot-spot, enhanced visual comfort
  • IP66 and 4G/1.5G vibration rated
  • Type 2 medium, Type 3 Short, Type 5 Wide
  • Superior fixture spacing, uniformity, and performance
  • Exceptional light distribution and high peak angels to maximize street side lumen utilization
  • High performance optics up to 15,227 delivered lumens
Where To Buy
SPEC SHEET

Specifications

Lumen Range
2,958 - 15,227
Dimming Protocol
0-10V Dimming
CCT
3000, 4000, 5000
CRI
70, 80, 90
Mounting Options
Post Top
Material - Housing
Low copper aluminum alloy
Wattage Range
27.5 - 138.3
Efficacy
84.6 - 124.8
Color Offering
BLS - Black Gloss Smooth, BLT - Black Matte Textured, DBS - Dark Bronze Gloss Smooth, DBT- Dark Bronze Matte Textured, GTT - Graphite Matte Textured, LG - Light Grey Matte Textured, LGS - Light Grey Gloss Smooth, PSS - Platinum Silver Gloss Smooth, VGT - Verde Green Matte Textured, WHS - White Gloss Smooth, WHT - White Matte Textured, CC – Custom Color
Certifications
UL 1598, CSA C22.2 No. 250.0
Ratings
Wet
Operating Temperature
-40C - 40
Controls Platform
LightGRIDPlus
Size
Round
Wattage
27.5 - 138.3

Product Documents

Brochures / Catalogs

Ouro Edge-Lit Brochure
7996 KB
2023-08-03
Color Chart Brochure
806 KB
2024-09-12
Ouro Family Brochure
38977 KB
2023-08-03

Technical Documents

Ouro Installation Instructions
3372 KB
2023-08-03

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
UR20-192L-110-3K7-5W-PT3000 K70 CRI12203 lm115106.5 WType VS
UR20-192L-110-4K7-5W-PT4000 K70 CRI12357 lm116106.5 WType VS
UR20-192L-110-5K7-5W-PT5000 K70 CRI12482 lm117106.5 WType VS
UR20-192L-135-3K7-5W-PT3000 K70 CRI14887 lm110135.6 WType VS
UR20-192L-135-4K7-5W-PT4000 K70 CRI15074 lm111135.6 WType VS
UR20-192L-135-5K7-5W-PT5000 K70 CRI15227 lm112135.6 WType VS
UR20-192L-30-3K7-5W-PT3000 K70 CRI3273 lm11927.5 WType VS
UR20-192L-30-4K7-5W-PT4000 K70 CRI3314 lm12127.5 WType VS
UR20-192L-30-5K7-5W-PT5000 K70 CRI3348 lm12227.5 WType VS
UR20-192L-45-3K7-5W-PT3000 K70 CRI5190 lm11844.1 WType VS
UR20-192L-45-4K7-5W-PT4000 K70 CRI5256 lm11944.1 WType VS
UR20-192L-45-5K7-5W-PT5000 K70 CRI5309 lm12044.1 WType VS
UR20-192L-60-3K7-5W-PT3000 K70 CRI7342 lm12260.2 WType VS
UR20-192L-60-4K7-5W-PT4000 K70 CRI7435 lm12360.2 WType VS
UR20-192L-60-5K7-5W-PT5000 K70 CRI7510 lm12560.2 WType VS
UR20-192L-75-3K7-5W-PT3000 K70 CRI8753 lm11973.6 WType VS
UR20-192L-75-4K7-5W-PT4000 K70 CRI8863 lm12073.6 WType VS
UR20-192L-75-5K7-5W-PT5000 K70 CRI8953 lm12273.6 WType VS
UR20-96L-135-3K7-2M-PT3000 K70 CRI11698 lm86138.3 WType II
UR20-96L-135-3K7-3-PT3000 K70 CRI13154 lm97138.3 WType III
UR20-96L-135-4K7-2M-PT4000 K70 CRI11845 lm86138.31 WType II
UR20-96L-135-4K7-3-PT4000 K70 CRI13320 lm96138.3 WType III
UR20-96L-135-5K7-2M-PT5000 K70 CRI11965 lm87138.11 WType II
UR20-96L-135-5K7-3-PT5000 K70 CRI13454 lm97138.37 WType III
UR20-96L-30-3K7-2M-PT3000 K70 CRI2958 lm10528.2 WType II
UR20-96L-30-3K7-3-PT3000 K70 CRI3326 lm11828.2 WType III
UR20-96L-30-4K7-2M-PT4000 K70 CRI2995 lm10628.2 WType II
UR20-96L-30-4K7-3-PT4000 K70 CRI3368 lm11928.2 WType III
UR20-96L-30-5K7-2M-PT5000 K70 CRI3025 lm10728.2 WType II
UR20-96L-30-5K7-3-PT5000 K70 CRI3402 lm12128.2 WType III
UR20-96L-50-3K7-2M-PT3000 K70 CRI4835 lm10446.6 WType II
UR20-96L-50-3K7-3-PT3000 K70 CRI5437 lm11746.6 WType III
UR20-96L-50-4K7-2M-PT4000 K70 CRI4896 lm10546.6 WType II
UR20-96L-50-4K7-3-PT4000 K70 CRI5505 lm11846.6 WType III
UR20-96L-50-5K7-2M-PT5000 K70 CRI4946 lm10646.6 WType II
UR20-96L-50-5K7-3-PT5000 K70 CRI5561 lm11946.6 WType III
UR20-96L-70-3K7-2M-PT3000 K70 CRI6863 lm9969.1 WType II
UR20-96L-70-3K7-3-PT3000 K70 CRI7718 lm11269.1 WType III
UR20-96L-70-4K7-2M-PT4000 K70 CRI6950 lm10169.1 WType II
UR20-96L-70-4K7-3-PT4000 K70 CRI7815 lm11369.1 WType III
UR20-96L-70-5K7-2M-PT5000 K70 CRI7020 lm10269.1 WType II
UR20-96L-70-5K7-3-PT5000 K70 CRI7894 lm11469.1 WType III
UR20-96L-90-3K7-2M-PT3000 K70 CRI9051 lm10090.2 WType II
UR20-96L-90-3K7-3-PT3000 K70 CRI10178 lm11390.2 WType III
UR20-96L-90-4K7-2M-PT4000 K70 CRI9165 lm10290.2 WType II
UR20-96L-90-4K7-3-PT4000 K70 CRI10306 lm11490.2 WType III
UR20-96L-90-5K7-2M-PT5000 K70 CRI9257 lm10390.2 WType II
UR20-96L-90-5K7-3-PT5000 K70 CRI10410 lm11590.2 WType III
Show All
