PRESCOLITE
LFCR-6SD-N

LiteFrame Commercial delivers the right features, at the right value, and right‑now availability to keep your commercial projects moving.

Features & Benefits

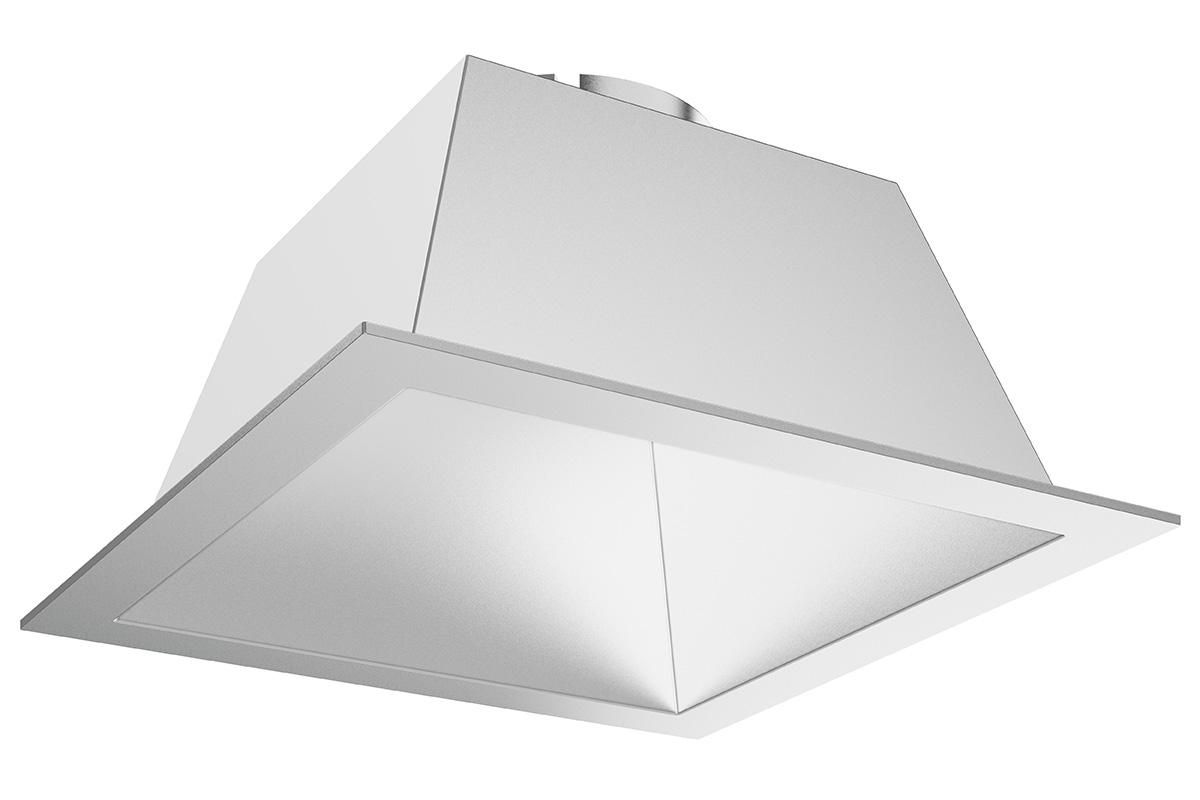

  • 6" square new construction downlight and wall wash delivering 500-5000 lumens
  • LED source utilizes Current's patented TriGain® phosphor to deliver 90 CRI color quality at 80 CRI efficacy

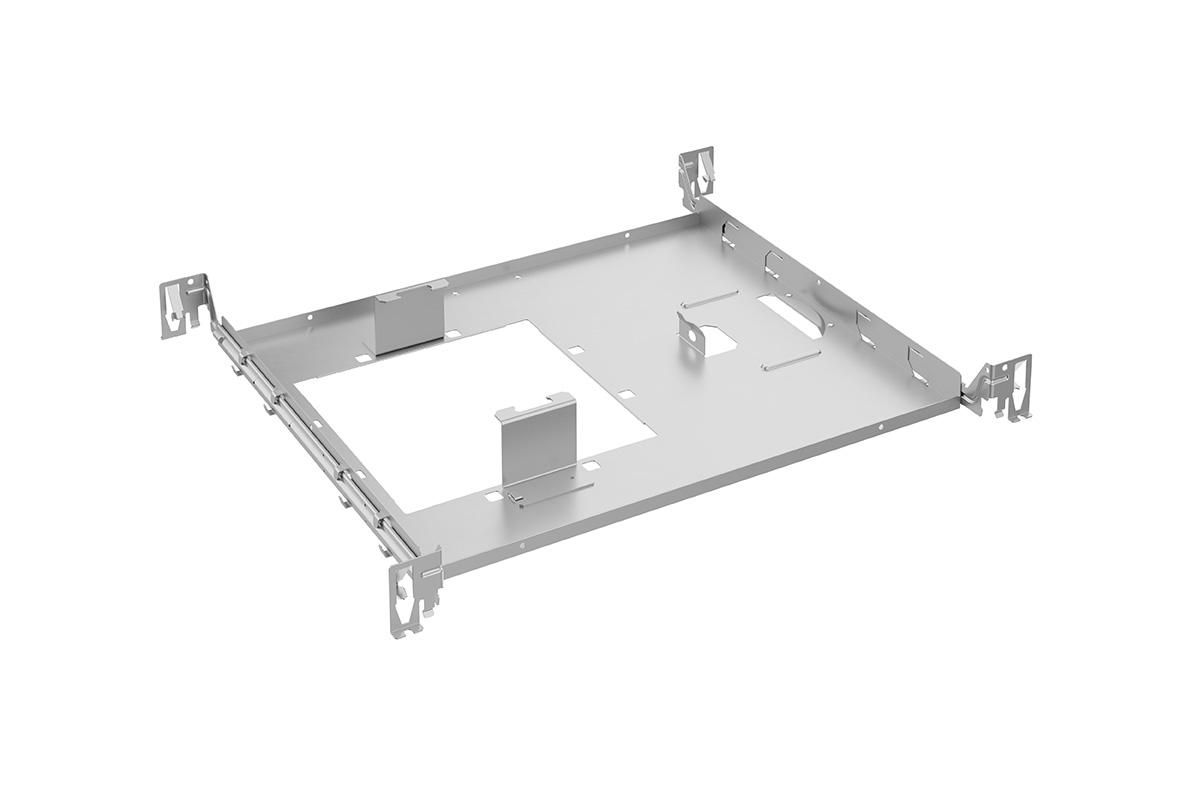

  • Modular design with snap-in J-Box and quick disconnect provides fast and flexible installation from below ceiling
  • NX Lighting Controls™, wired and wireless capability available
  • Mix and match performance and budget for a cohesive project appearance with Prescolite's coordinated portfolio
Where To Buy
SPEC SHEET

Specifications

Aperture
6
Aperture Shape
Square
Lumen Range
500-5000
Dimming Protocol
0-10V Dimming, Phase Dimming, DMX, DALI
Certifications
cCSAus, UL 924, CEC Title 20, FCC, 47 CFR Part 15 Class A
Ratings
Non-IC, Chicago Plenum, IP65, Wet, Damp
Controls Platform
NX Networked - Wired, NX Networked - Wireless

Product Documents

Brochures / Catalogs

LiteFrame Commercial Brochure
4630 KB
2026-03-31
PRE_Trigain_Flyer
944 KB
2026-02-23

Sell Sheets

LFCR Sell Sheet
643 KB
2026-02-19

Design / BIM Files / 3D Models

LFCR-6SD-N BIM File
632 KB
2026-02-19

Technical Documents

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
LFCR-6SD-H_LFCR-6D-MN-05L35K9-WD-DM1_LFCR-6SD-T-WD-S3500 K90 CRI528 lm89.51152442377885.9 WWide
LFCR-6SD-H_LFCR-6D-MN-05L35K9-WD-DM1_LFCR-6SD-T-WW-S3500 K90 CRI568 lm96.227188640567975.9 WWall Wash
LFCR-6SD-H_LFCR-6D-MN-10L35K9-WD-DM1_LFCR-6SD-T-WD-S3500 K90 CRI1016 lm90.7190265486725711.2 WWide
LFCR-6SD-H_LFCR-6D-MN-10L35K9-WD-DM1_LFCR-6SD-T-WW-S3500 K90 CRI1092 lm97.5252844500632211.2 WWall Wash
LFCR-6SD-H_LFCR-6D-MN-15L35K9-WD-DM1_LFCR-6SD-T-WD-S3500 K90 CRI1467 lm96.4918102779071615.2 WWide
LFCR-6SD-H_LFCR-6D-MN-15L35K9-WD-DM1_LFCR-6SD-T-WW-S3500 K90 CRI1577 lm103.731175283341115.2 WWall Wash
LFCR-6SD-H_LFCR-6D-MN-20L35K9-WD-DM1_LFCR-6SD-T-WD-S3500 K90 CRI1946 lm90.0925925925925821.6 WWide
LFCR-6SD-H_LFCR-6D-MN-20L35K9-WD-DM1_LFCR-6SD-T-WW-S3500 K90 CRI2092 lm95.921.8 WWall Wash
LFCR-6SD-H_LFCR-6D-MN-25L35K9-WD-DM1_LFCR-6SD-T-WD-S3500 K90 CRI2444 lm101.3901434942084224.1 WWide
LFCR-6SD-H_LFCR-6D-MN-25L35K9-WD-DM1_LFCR-6SD-T-WW-S3500 K90 CRI2627 lm108.9970093473196324.1 WWall Wash
LFCR-6SD-H_LFCR-6D-MN-30L35K9-WD-DM1_LFCR-6SD-T-WD-S3500 K90 CRI2930 lm98.306177532286729.8 WWide
LFCR-6SD-H_LFCR-6D-MN-30L35K9-WD-DM1_LFCR-6SD-T-WW-S3500 K90 CRI3149 lm105.6816666996627829.8 WWall Wash
LFCR-6SD-H_LFCR-6D-MN-35L35K9-WD-DM1_LFCR-6SD-T-WD-S3500 K90 CRI3441 lm93.515695139156136.8 WWide
LFCR-6SD-H_LFCR-6D-MN-35L35K9-WD-DM1_LFCR-6SD-T-WW-S3500 K90 CRI3700 lm100.5317750416826936.8 WWall Wash
LFCR-6SD-H_LFCR-6D-MN-40L35K9-WD-DM1_LFCR-6SD-T-WD-S3500 K90 CRI3878 lm93.2127155661447741.6 WWide
LFCR-6SD-H_LFCR-6D-MN-40L35K9-WD-DM1_LFCR-6SD-T-WW-S3500 K90 CRI4169 lm100.2060642160199741.6 WWall Wash
LFCR-6SD-H_LFCR-6D-MN-45L35K9-WD-DM1_LFCR-6SD-T-WD-S3500 K90 CRI4368 lm96.4338692557645945.3 WWide
LFCR-6SD-H_LFCR-6D-MN-45L35K9-WD-DM1_LFCR-6SD-T-WW-S3500 K90 CRI4696 lm103.6688871958168245.3 WWall Wash
LFCR-6SD-H_LFCR-6D-MN-50L35K9-WD-DM1_LFCR-6SD-T-WD-S3500 K90 CRI4846 lm93.0108500972903952.1 WWide
LFCR-6SD-H_LFCR-6D-MN-50L35K9-WD-DM1_LFCR-6SD-T-WW-S3500 K90 CRI5209 lm99.9890536503245152.1 WWall Wash
Show All
