PRESCOLITE
LFCR-4RD-N

LiteFrame Commercial delivers the right features, at the right value, and right‑now availability to keep your commercial projects moving.

Features & Benefits

  • 4" round new construction downlight and wall wash delivering 500-5000 lumens
  • LED source utilizes Current's patented TriGain® phosphor to deliver 90 CRI color quality at 80 CRI efficacy

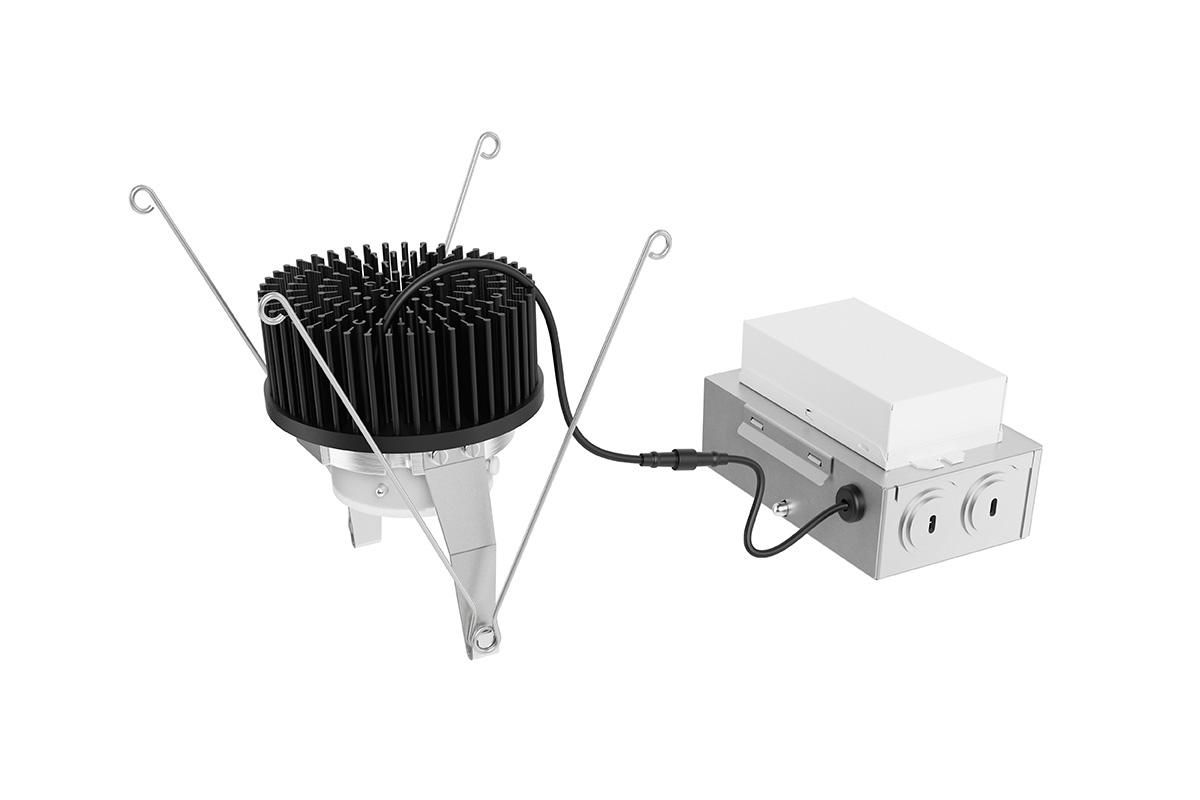

  • Modular design with snap-in J-Box and quick disconnect provides fast and flexible installation from below ceiling

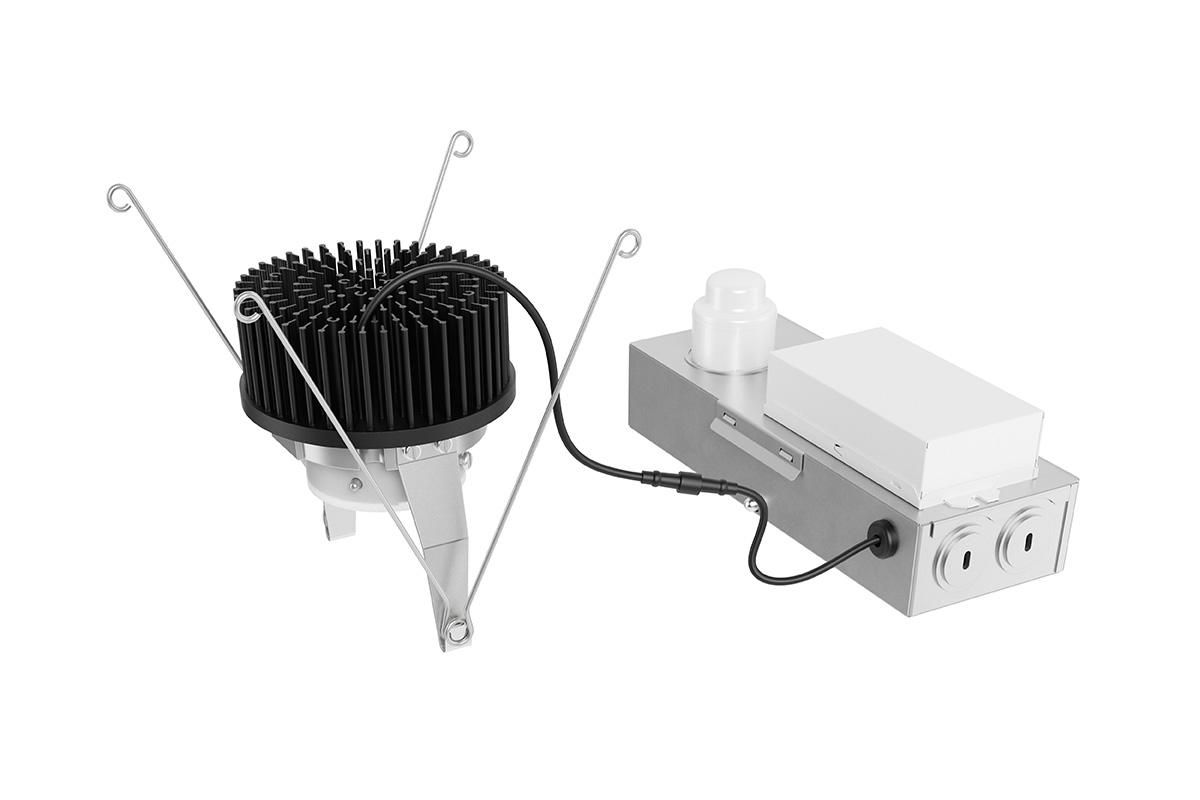

  • NX Lighting Controls™, wired and wireless capability available
  • Mix and match performance and budget for a cohesive project appearance with Prescolite's coordinated portfolio
Where To Buy
SPEC SHEET

Specifications

Aperture
4
Aperture Shape
Round
Lumen Range
500-5000
Dimming Protocol
0-10V Dimming, Phase Dimming, DMX, DALI
Certifications
cCSAus, UL 924, CEC Title 20, FCC, 47 CFR Part 15 Class A
Ratings
Non-IC, Chicago Plenum, IP65, Wet, Damp
Controls Platform
NX Networked - Wired, NX Networked - Wireless

Product Documents

Brochures / Catalogs

LiteFrame Commercial Brochure
4630 KB
2026-03-31
PRE_Trigain_Flyer
944 KB
2026-02-23

Sell Sheets

LFCR Sell Sheet
643 KB
2026-02-19

Design / BIM Files / 3D Models

LFCR-4RD-N BIM File
800 KB
2026-02-19

Technical Documents

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
LFCR-4RD-H_LFCR-4D-MN-05L35K9-WD-DM1_LFCR-4RD-T-WD-S3500 K90 CRI552 lm94.55.9 WWide
LFCR-4RD-H_LFCR-4D-MN-05L35K9-WD-DM1_LFCR-4RD-T-WW-S3500 K90 CRI572 lm96.963151842407875.9 WWall Wash
LFCR-4RD-H_LFCR-4D-MN-10L35K9-WD-DM1_LFCR-4RD-T-WD-S3500 K90 CRI1062 lm94.411.2 WWide
LFCR-4RD-H_LFCR-4D-MN-10L35K9-WD-DM1_LFCR-4RD-T-WW-S3500 K90 CRI1101 lm98.2711757269279611.2 WWall Wash
LFCR-4RD-H_LFCR-4D-MN-15L35K9-WD-DM1_LFCR-4RD-T-WD-S3500 K90 CRI1533 lm101.115.2 WWide
LFCR-4RD-H_LFCR-4D-MN-15L35K9-WD-DM1_LFCR-4RD-T-WW-S3500 K90 CRI1589 lm104.5245303524297615.2 WWall Wash
LFCR-4RD-H_LFCR-4D-MN-20L35K9-WD-DM1_LFCR-4RD-T-WD-S3500 K90 CRI2034 lm95.321.3 WWide
LFCR-4RD-H_LFCR-4D-MN-20L35K9-WD-DM1_LFCR-4RD-T-WW-S3500 K90 CRI2108 lm97.121.7 WWall Wash
LFCR-4RD-H_LFCR-4D-MN-25L35K9-WD-DM1_LFCR-4RD-T-WD-S3500 K90 CRI2554 lm106.124.1 WWide
LFCR-4RD-H_LFCR-4D-MN-25L35K9-WD-DM1_LFCR-4RD-T-WW-S3500 K90 CRI2647 lm109.8306384819071624.1 WWall Wash
LFCR-4RD-H_LFCR-4D-MN-30L35K9-WD-DM1_LFCR-4RD-T-WD-S3500 K90 CRI3062 lm102.729.8 WWide
LFCR-4RD-H_LFCR-4D-MN-30L35K9-WD-DM1_LFCR-4RD-T-WW-S3500 K90 CRI3173 lm106.4899394851286629.8 WWall Wash
LFCR-4RD-H_LFCR-4D-MN-35L35K9-WD-DM1_LFCR-4RD-T-WD-S3500 K90 CRI3597 lm97.736.8 WWide
LFCR-4RD-H_LFCR-4D-MN-35L35K9-WD-DM1_LFCR-4RD-T-WW-S3500 K90 CRI3728 lm101.3006605104527436.8 WWall Wash
LFCR-4RD-H_LFCR-4D-MN-40L35K9-WD-DM1_LFCR-4RD-T-WD-S3500 K90 CRI4053 lm97.341.6 WWide
LFCR-4RD-H_LFCR-4D-MN-40L35K9-WD-DM1_LFCR-4RD-T-WW-S3500 K90 CRI4200 lm100.9724585886090341.6 WWall Wash
LFCR-4RD-H_LFCR-4D-MN-45L35K9-WD-DM1_LFCR-4RD-T-WD-S3500 K90 CRI4566 lm100.745.3 WWide
LFCR-4RD-H_LFCR-4D-MN-45L35K9-WD-DM1_LFCR-4RD-T-WW-S3500 K90 CRI4732 lm104.461765874178745.3 WWall Wash
LFCR-4RD-H_LFCR-4D-MN-50L35K9-WD-DM1_LFCR-4RD-T-WD-S3500 K90 CRI5065 lm97.252.1 WWide
LFCR-4RD-H_LFCR-4D-MN-50L35K9-WD-DM1_LFCR-4RD-T-WW-S3500 K90 CRI5249 lm100.7537882862734552.1 WWall Wash
