COLUMBIA LIGHTING

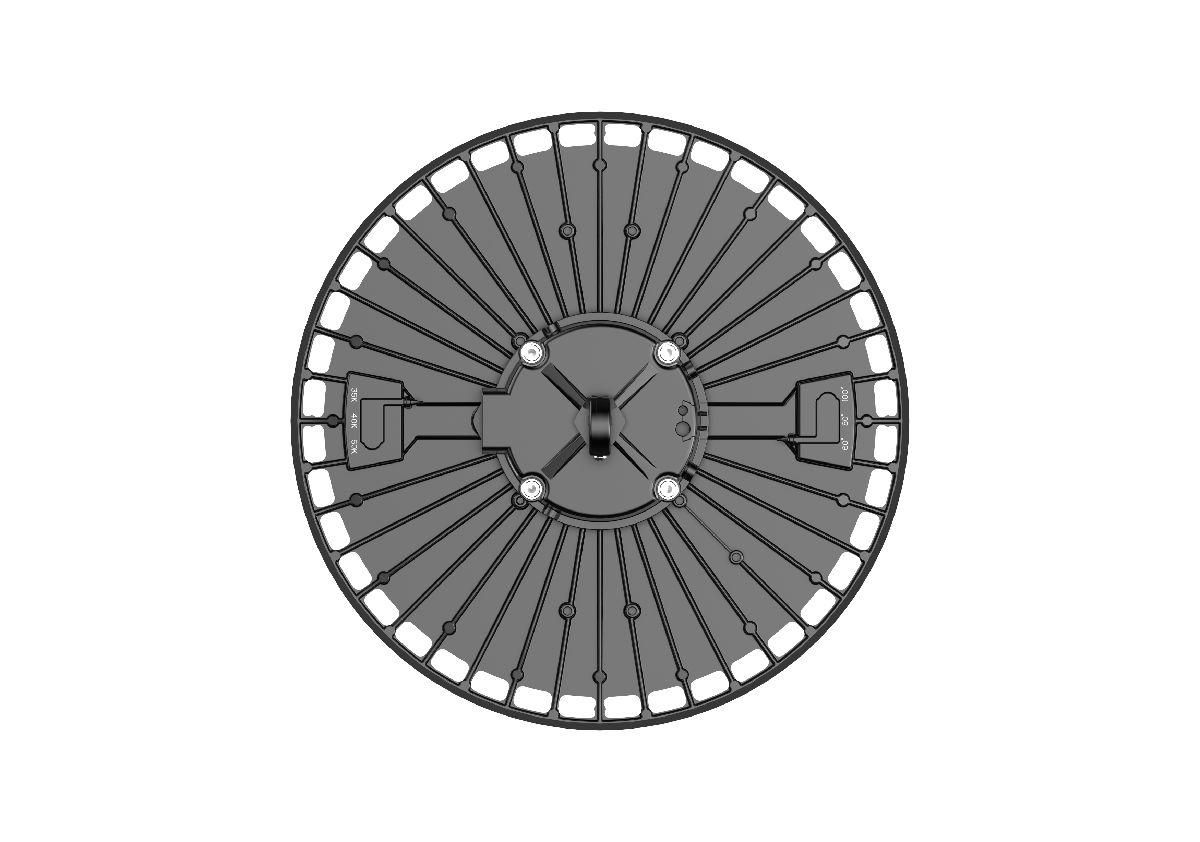

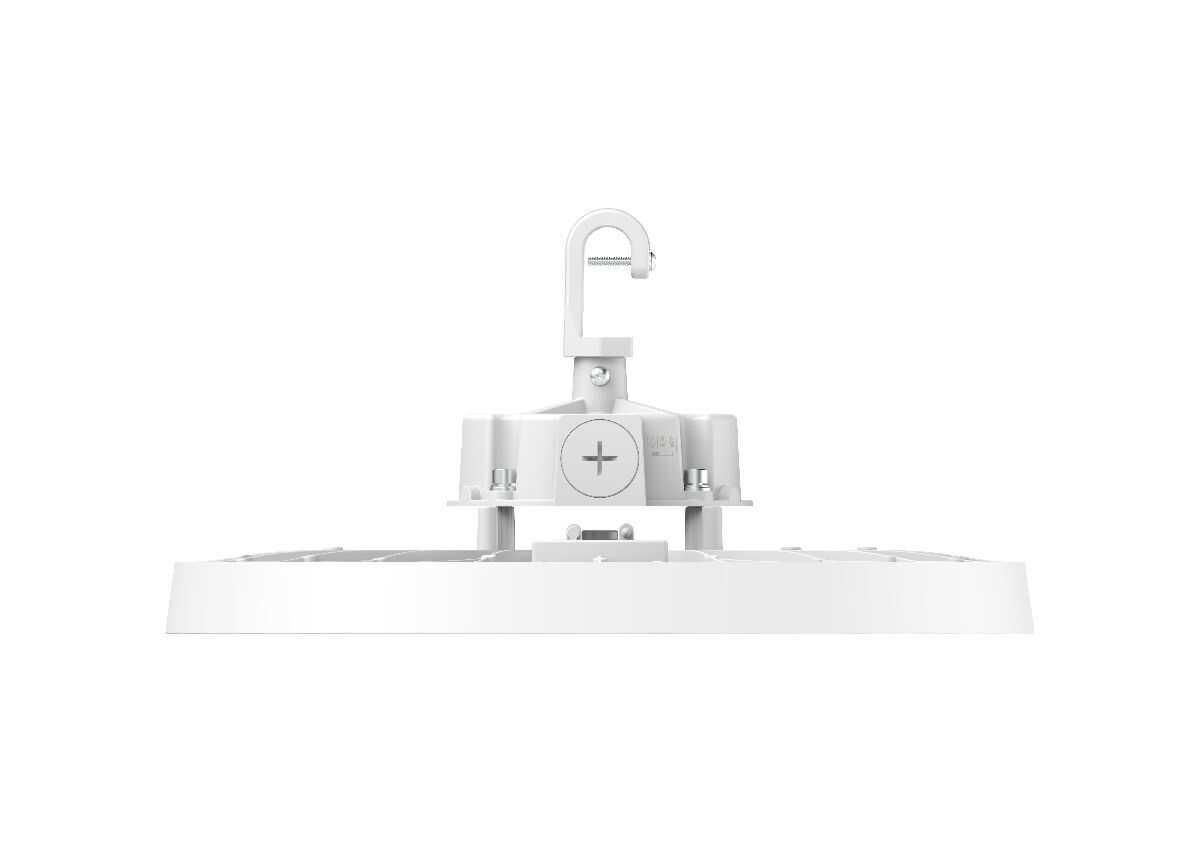

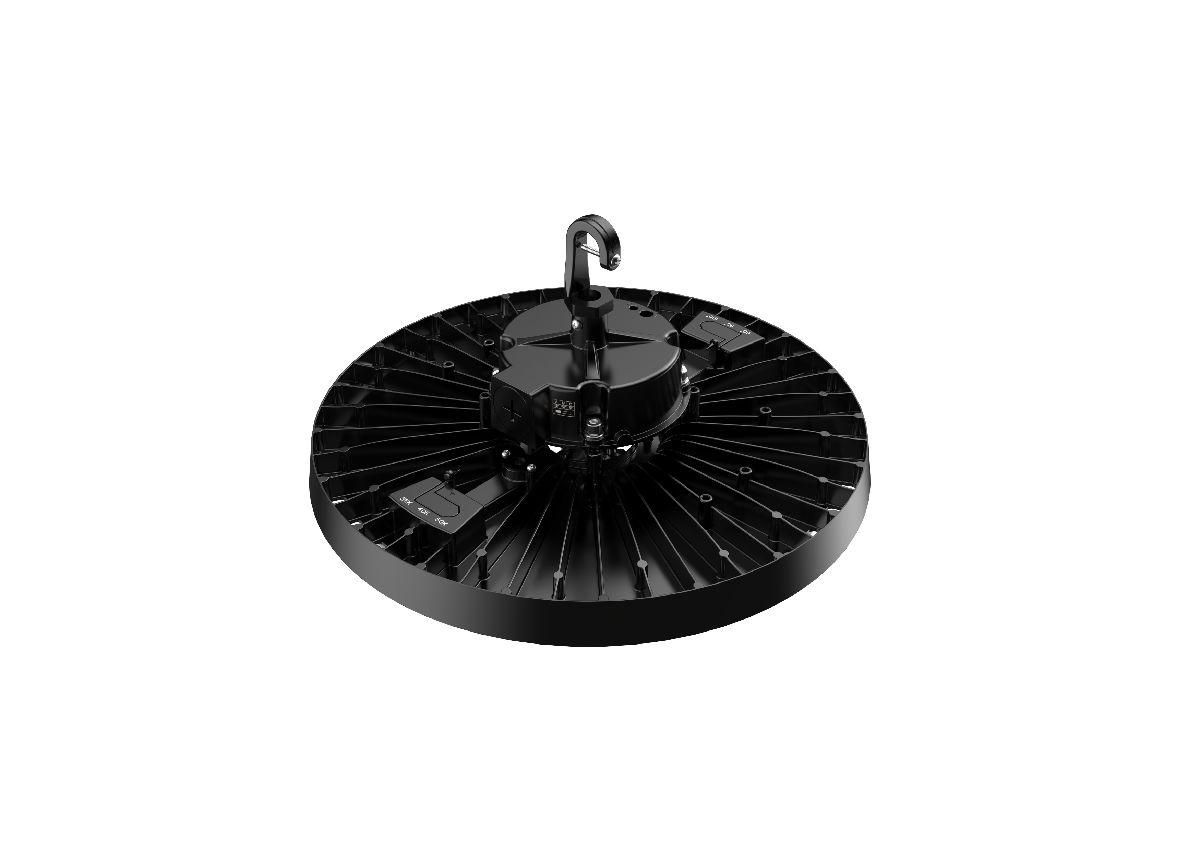

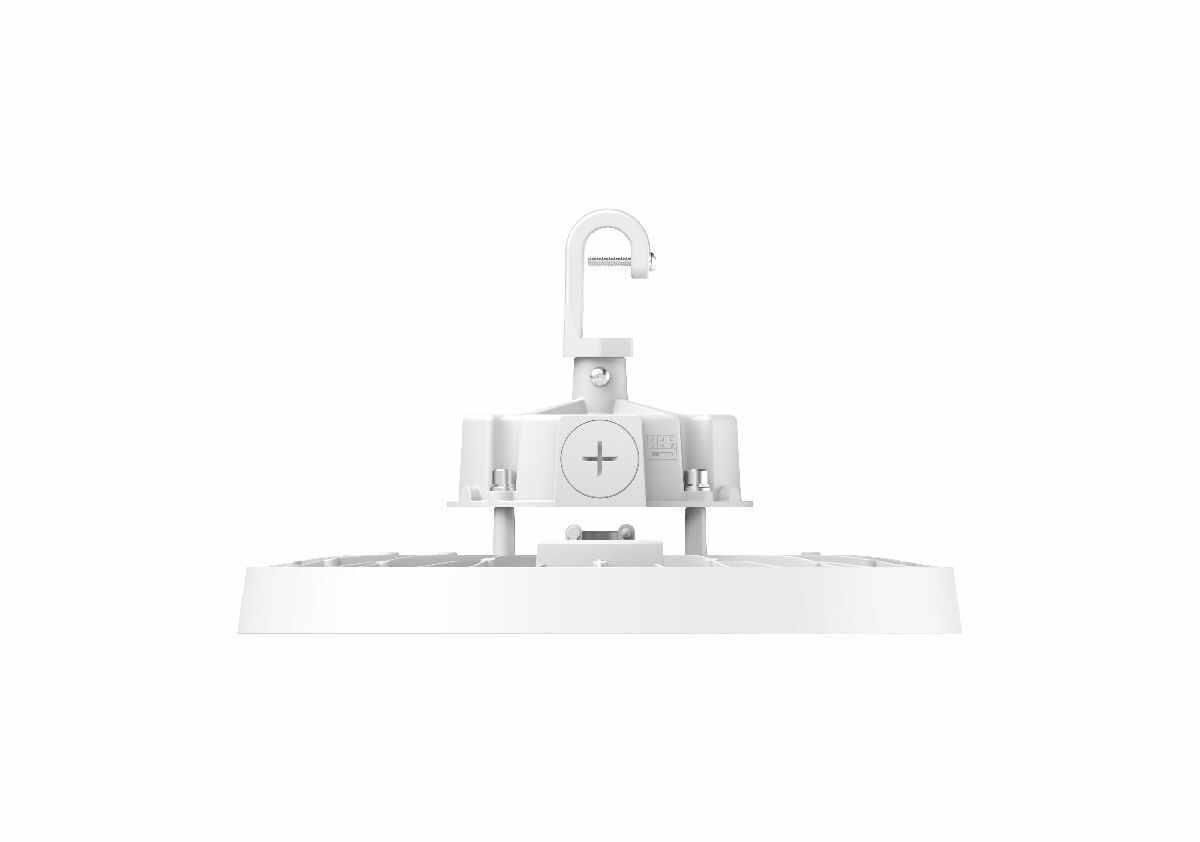

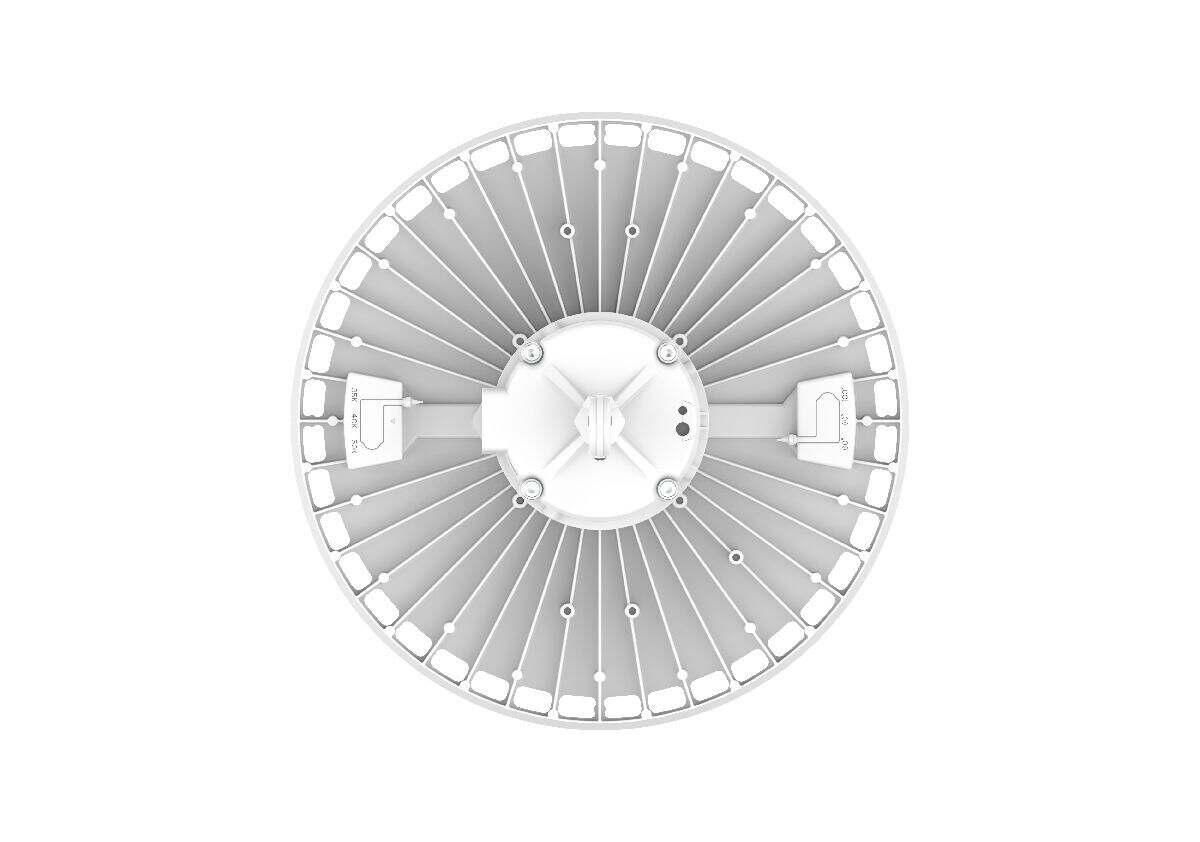

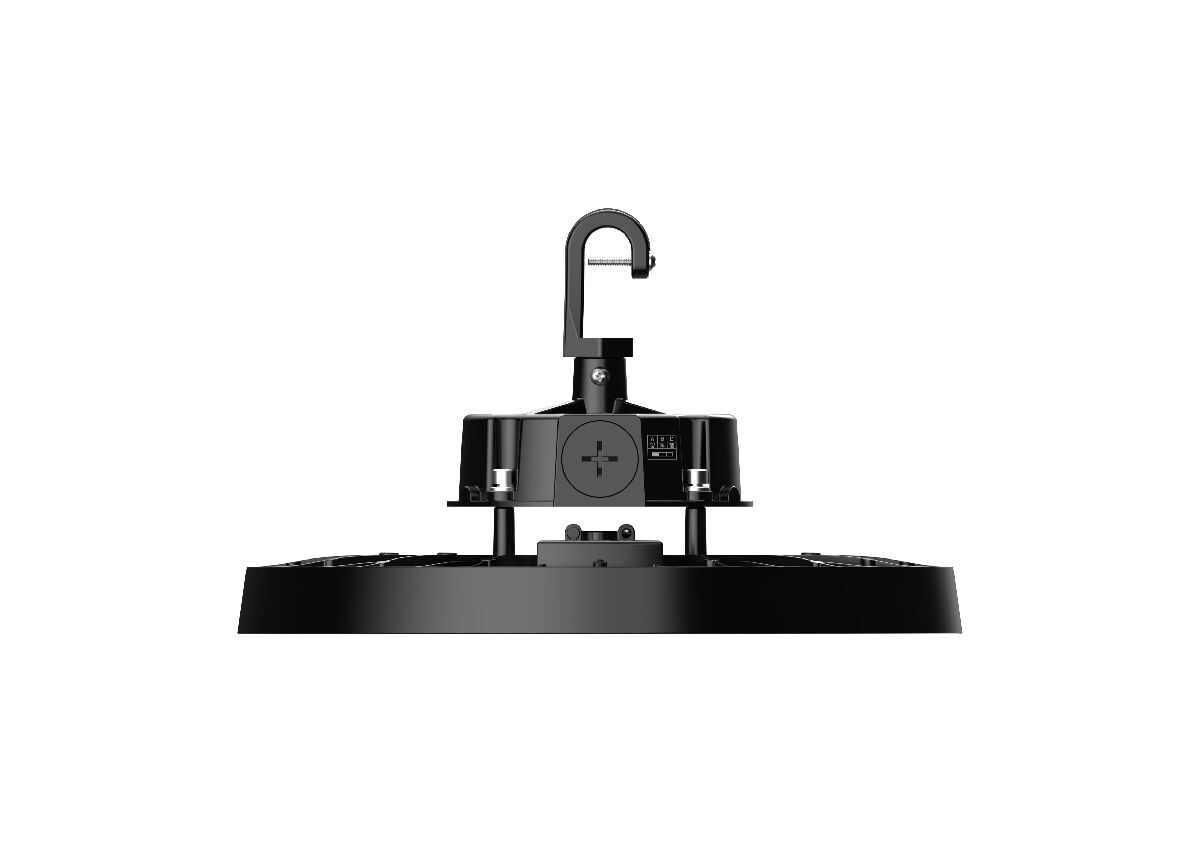

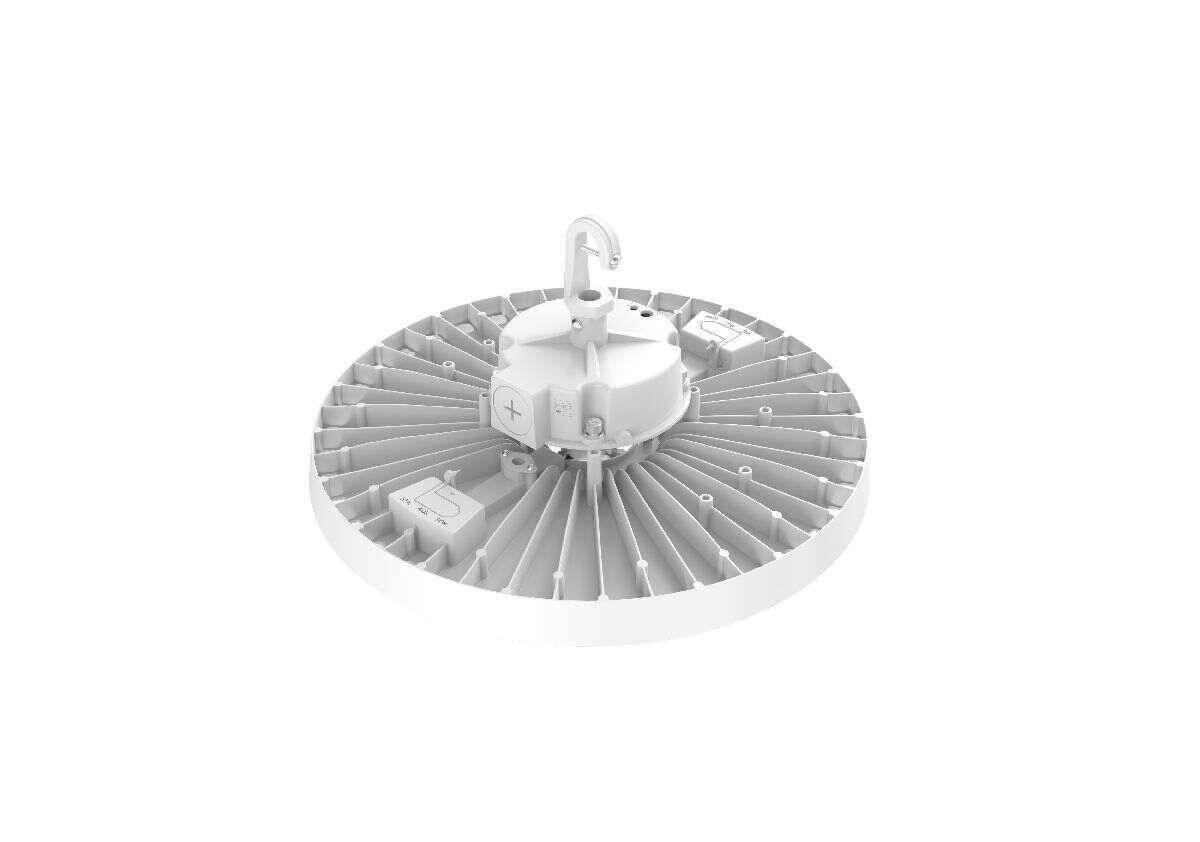

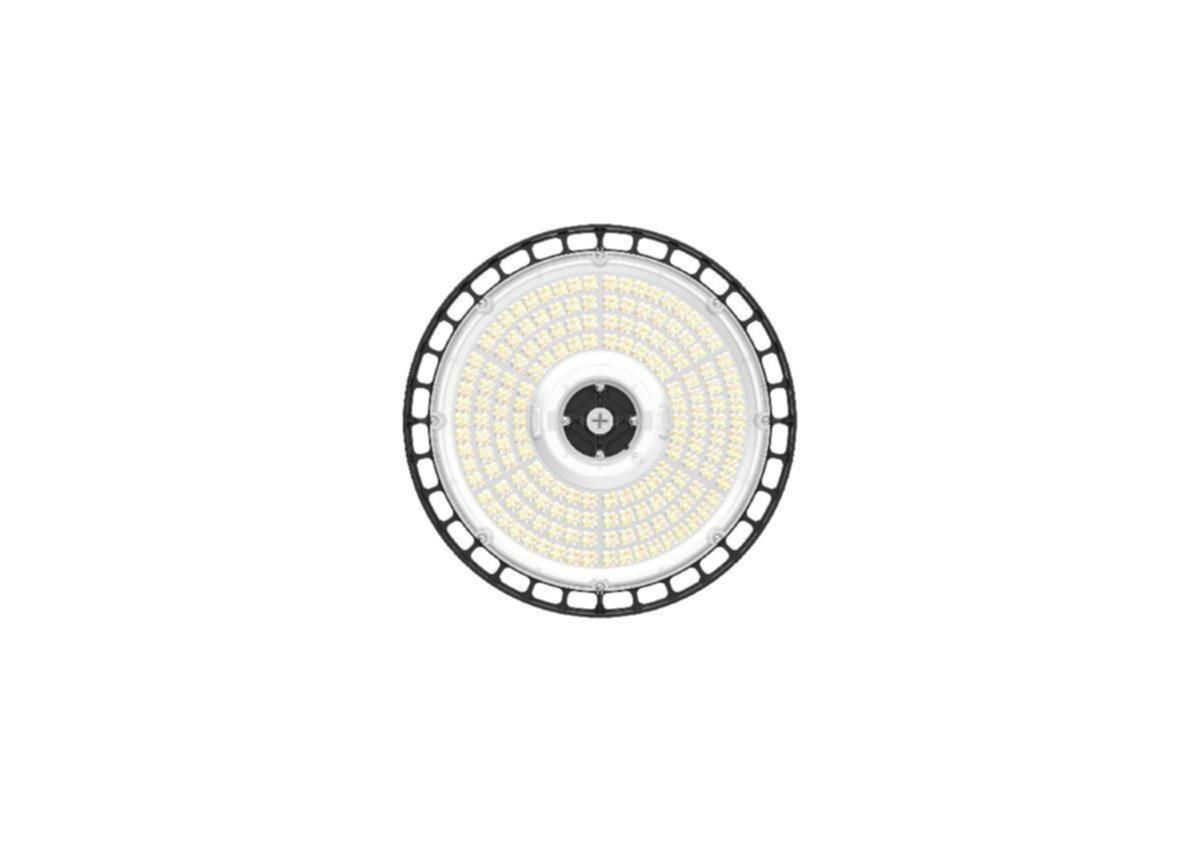

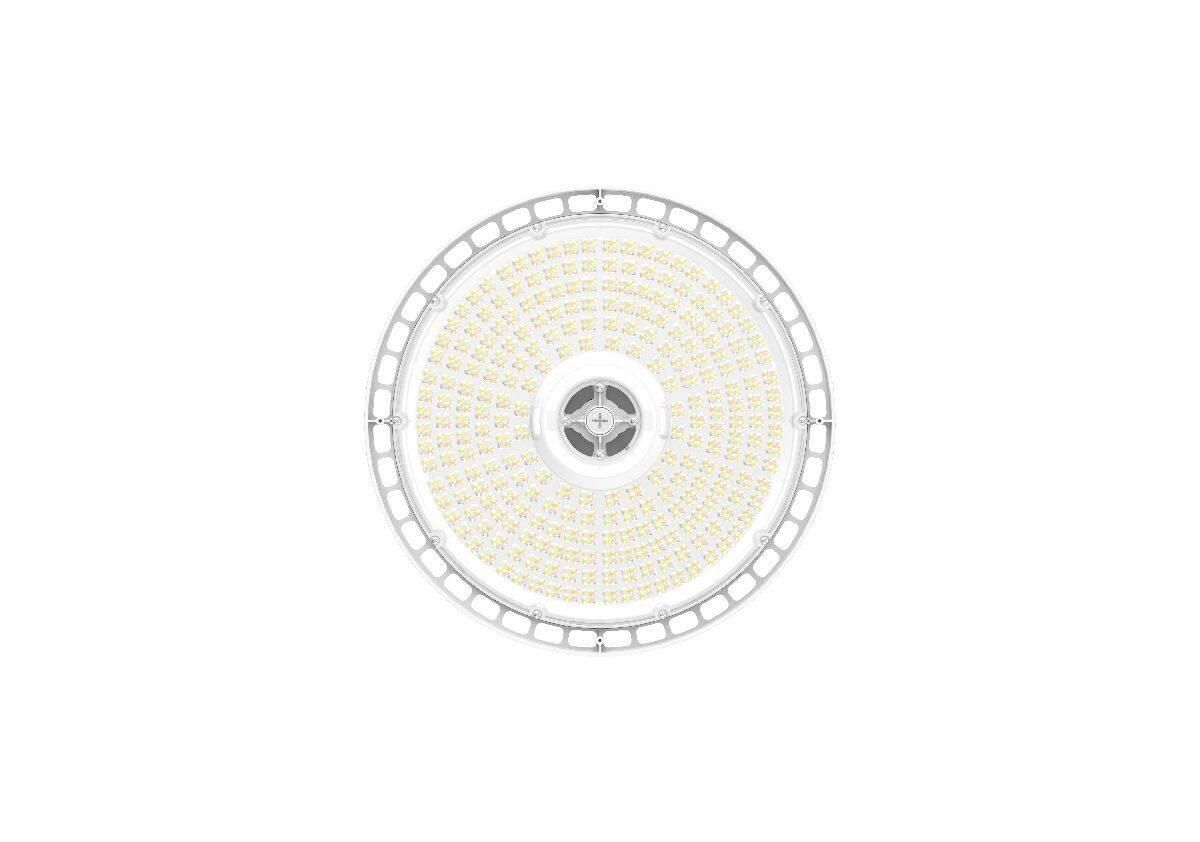

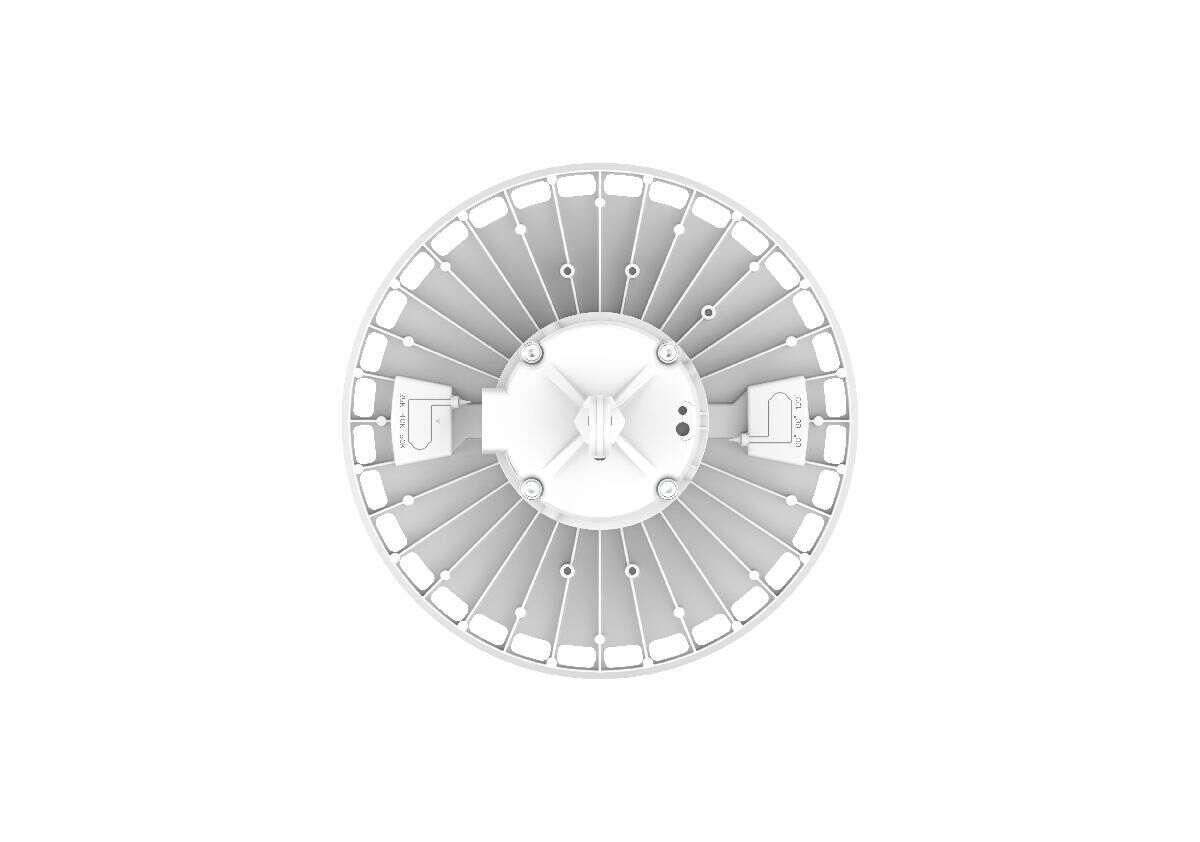

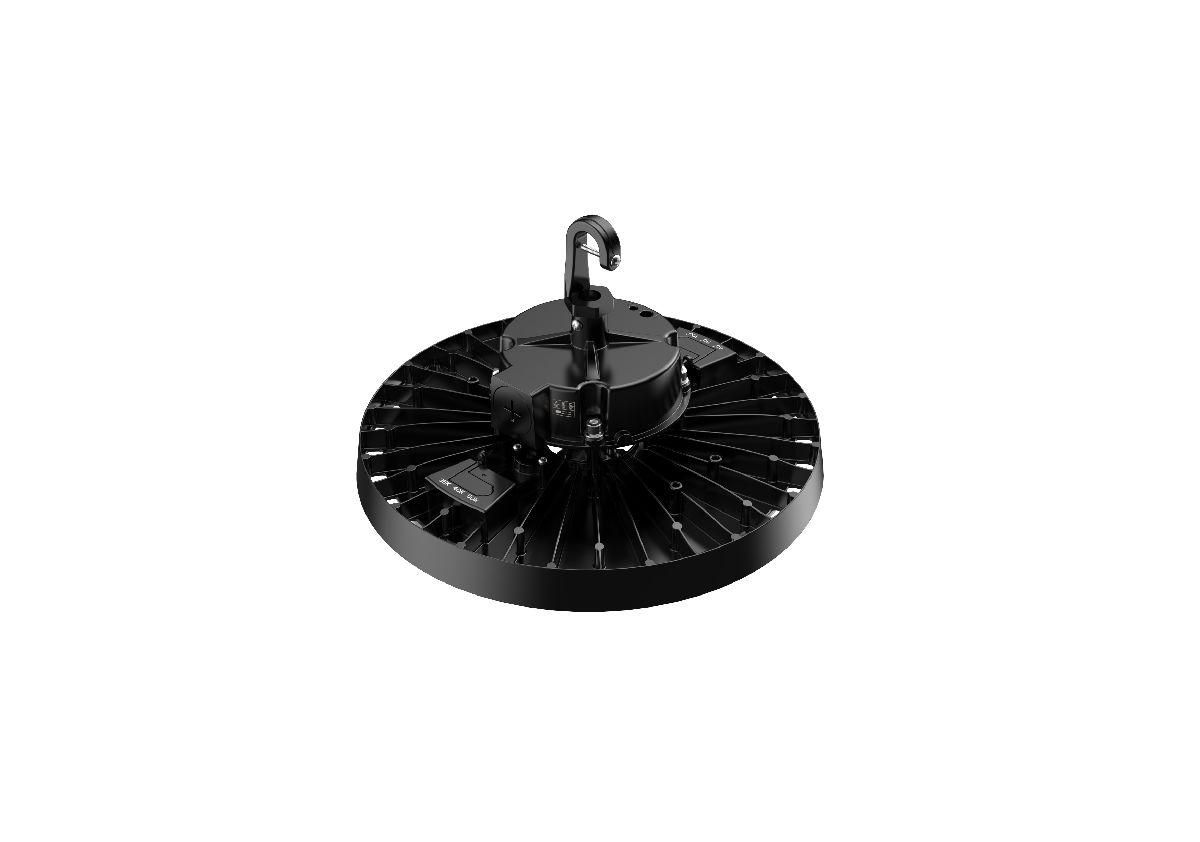

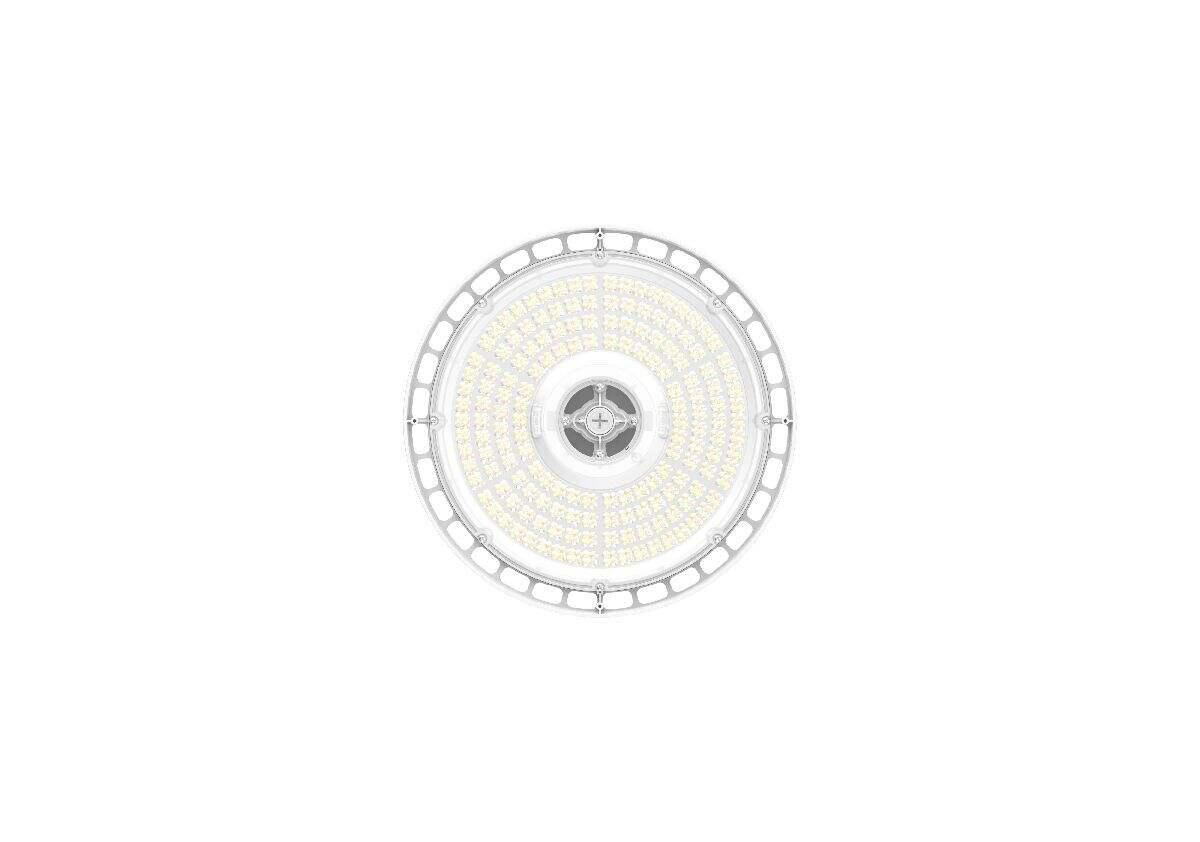

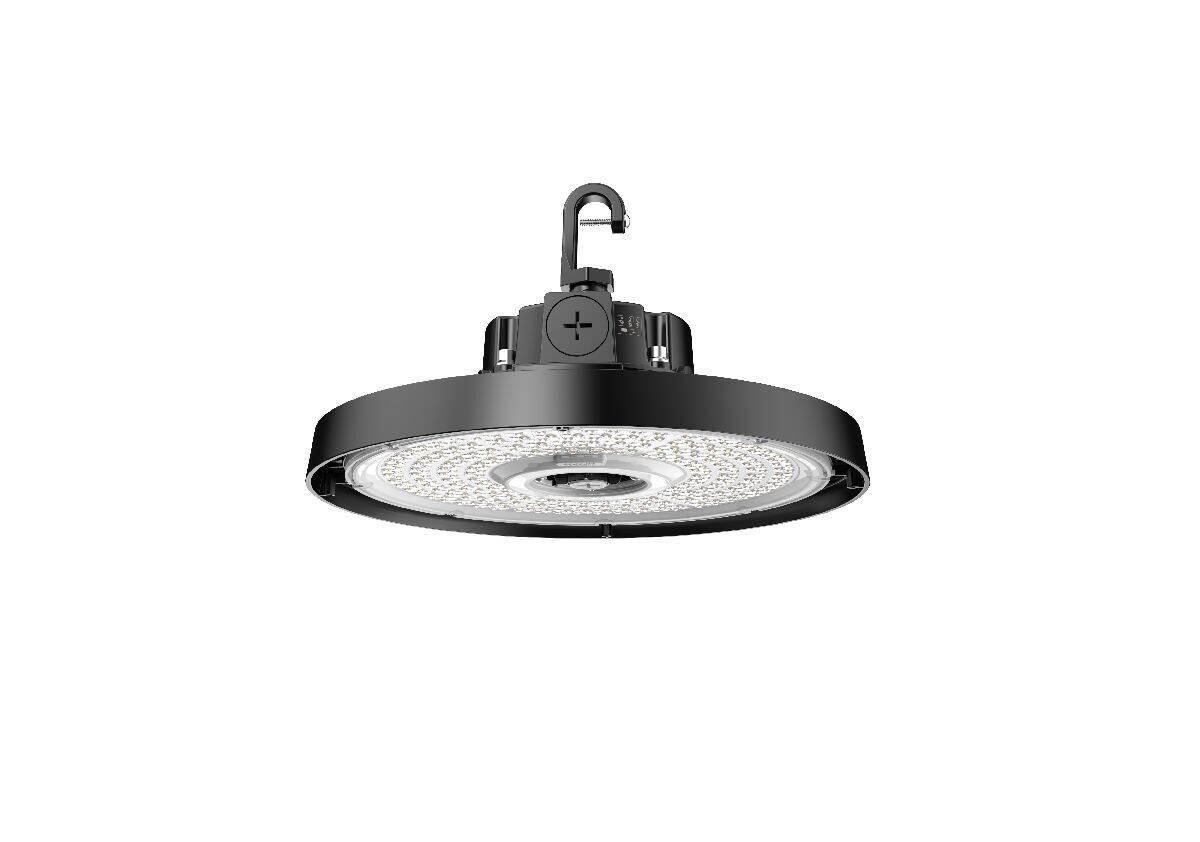

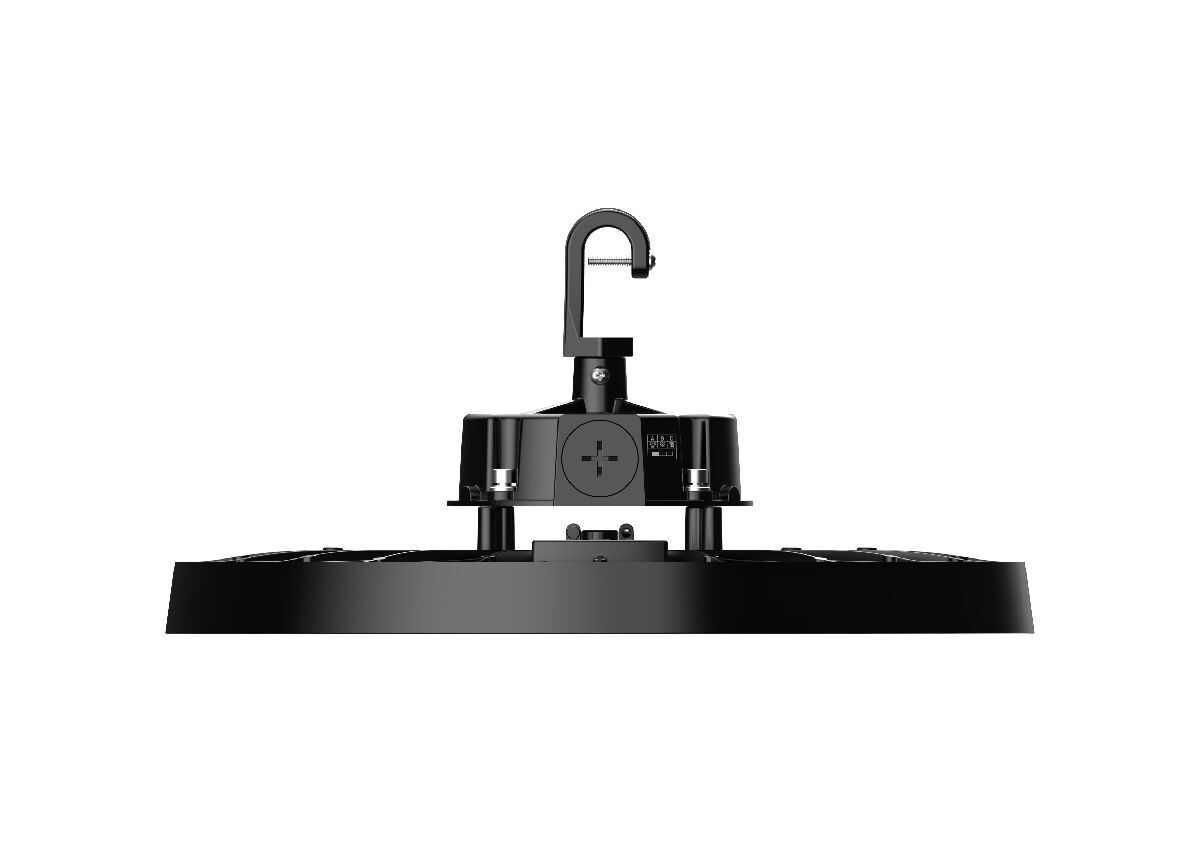

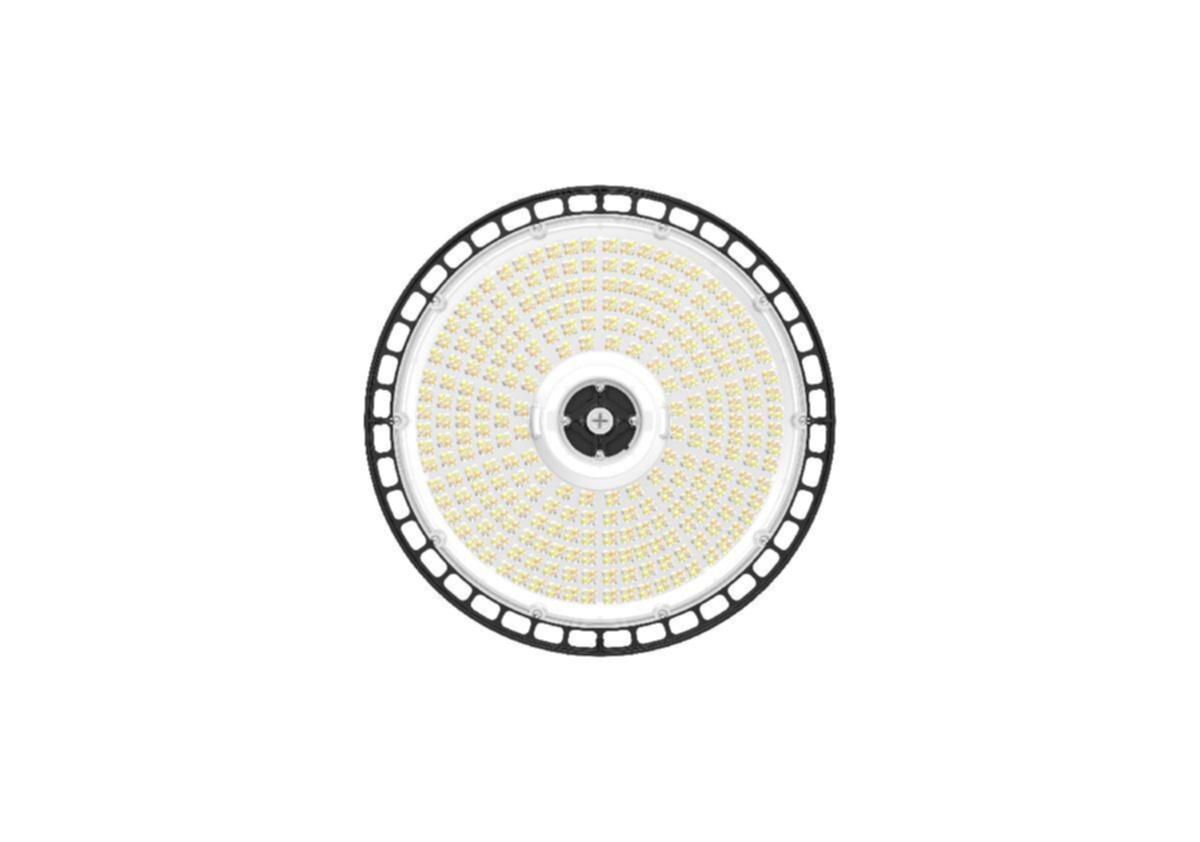

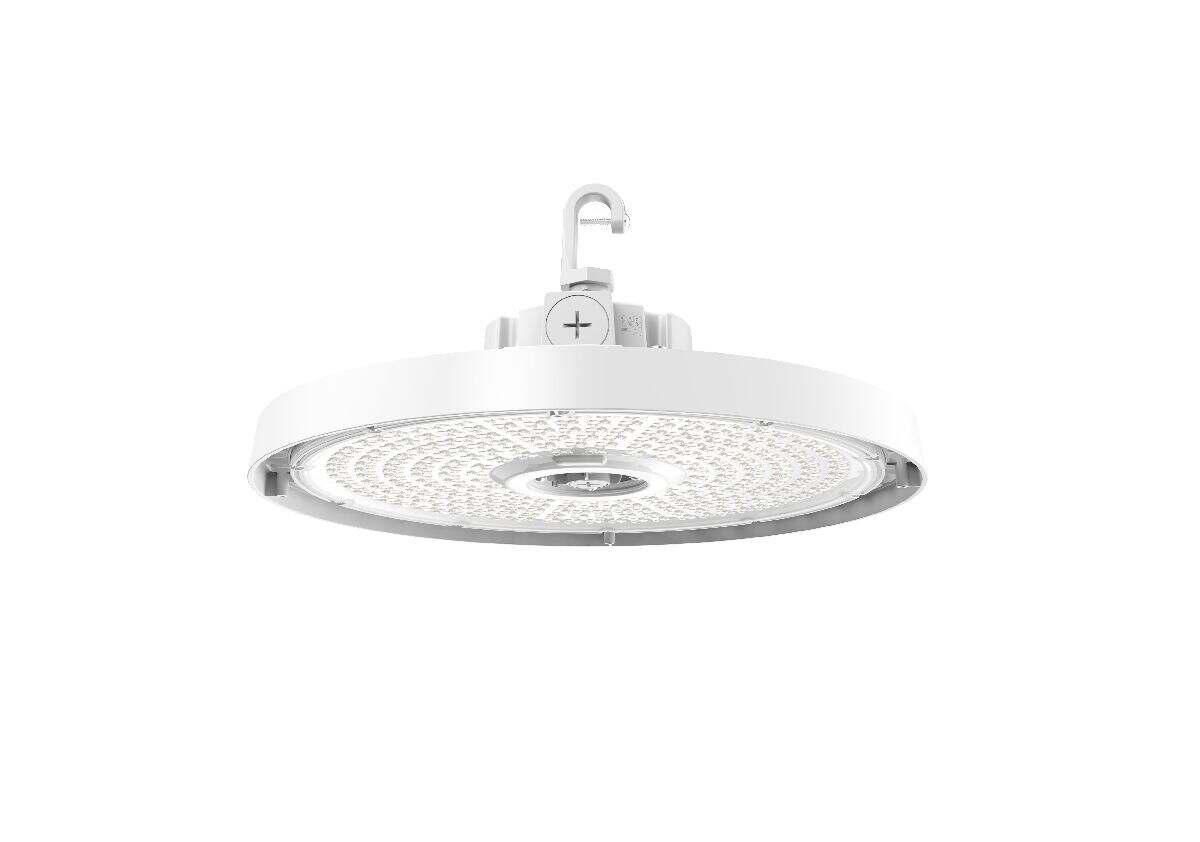

CRN2

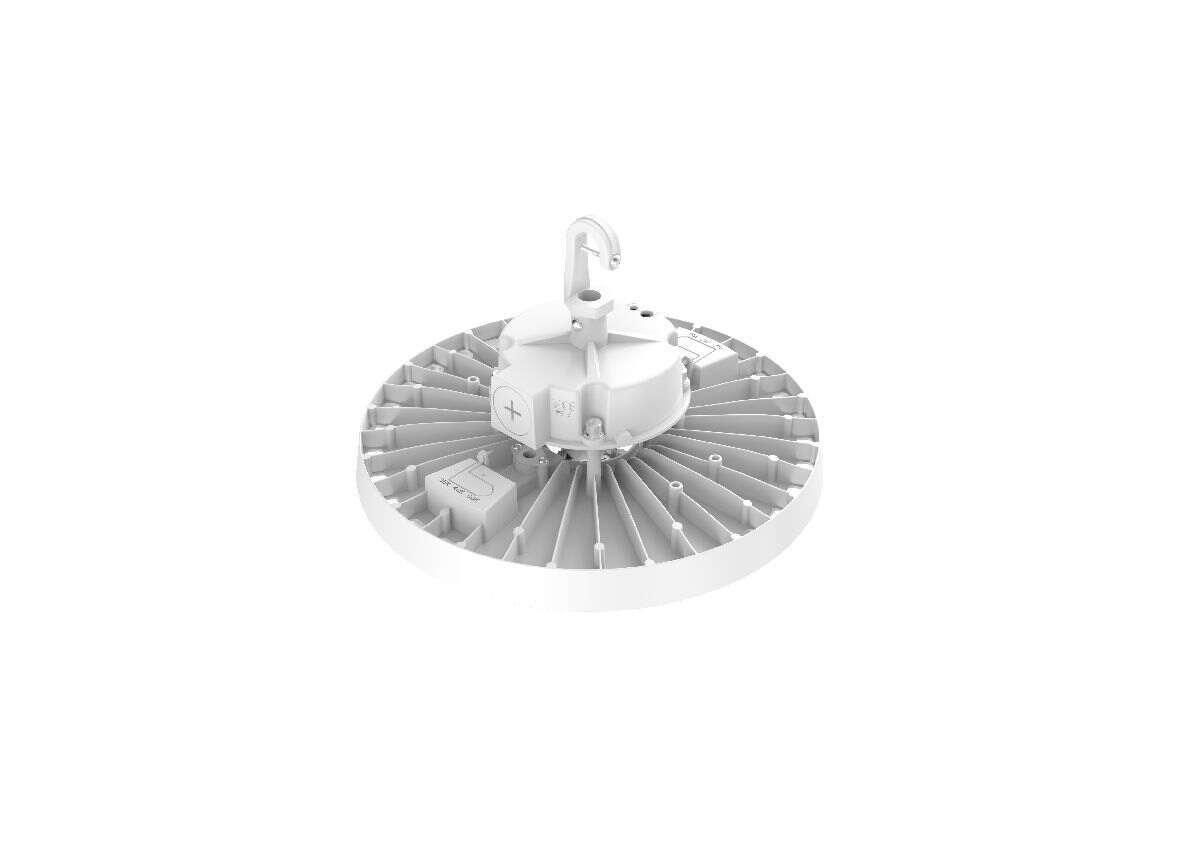

The CRN2 is a switchable lumen, CCT and distribution product with NSF, IP65, NEMA 4X and Wet Location Rated High Bay luminaire with an exceptional performance.

Features & Benefits

  • Ideal solution for the unknown with switchable lumen, CCT and distribution technology making it a versatile stock solution
  • Aesthetically appealing for commercial and industrial applications
  • Reflector options to deliver glare reduction and aesthetic customization
  • Optional ‘plug and play’ occupancy sensor
  • Lumens up to 38,000
  • Up to 178 LPW
  • Ambient temperature -40°C up to 50°C
  • Driver design life +50,000hr at 50 ºC
Where To Buy
SPEC SHEET

Specifications

Product Technology
Switchable Technology
Lumen Range
15,200 - 38,000
Dimming Protocol
0-10V Dimming
CCT
3500, 4000, 5000
CRI
80
Switchable Technology
Switchable CCT;Switchable Lumen;Switchable Distribution
Mounting Options
Pendant, Yoke (Wall), Snap Hook, Ring
Material - Housing
Die cast aluminum
Wattage Range
100 - 240
Efficacy
Up to 178

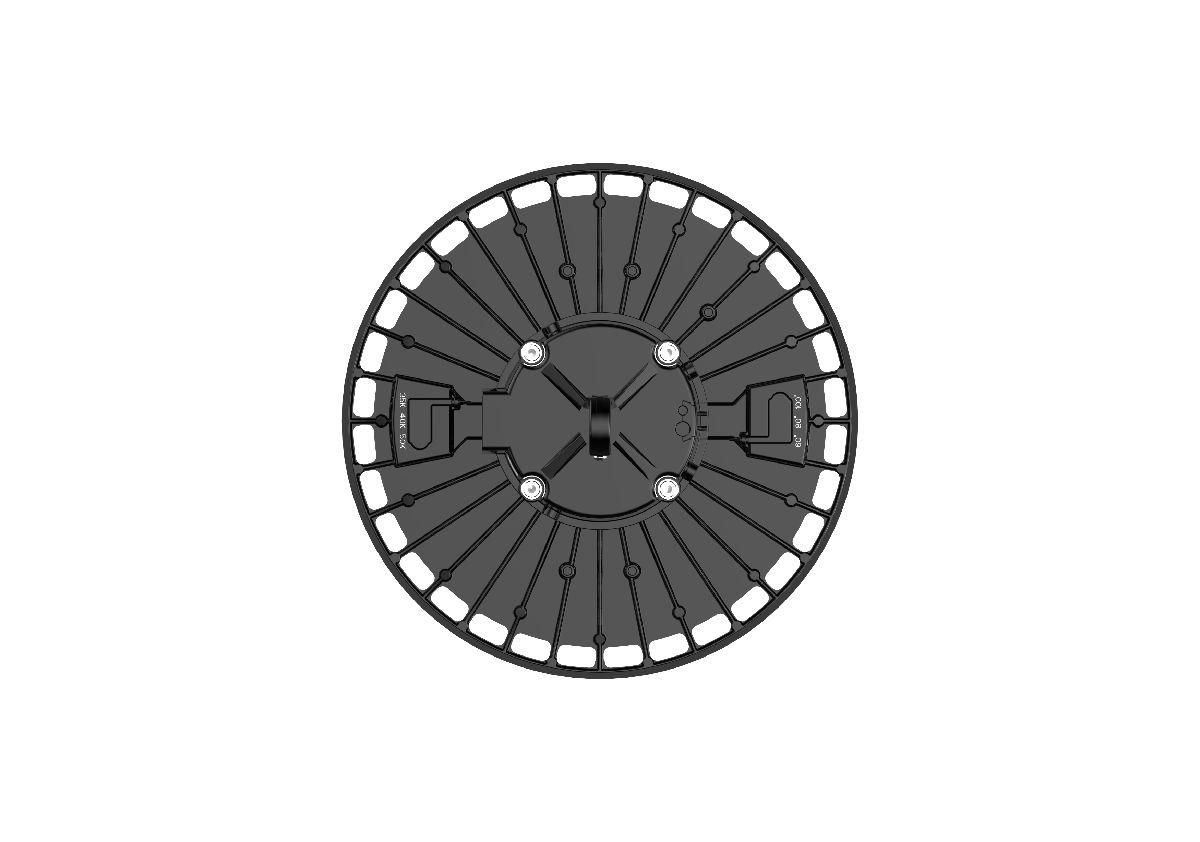

Color Offering
White, Black
Beam Angle
Wide (100), Medium (80), Narrow (60)
Certifications
UL, DLC 5.1 Premium
Ratings
IP65, Wet Location, NSF, NEMA 4X, IK10, IK07, UL
Operating Temperature
-40 to 50
Warranty
5 year limited
Controls Platform
Independent Control
Material
Frosted Polycarbonate Lens

Product Documents

Brochures / Catalogs

CUR_HLI_Industrial_Brochure
62011 KB
2024-11-25

Sell Sheets

Technical Documents

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
CRN2-1-LSCS-EDMV-SO-W_3500K_60deg_100W3500 K80 CRI15200 lm16095 W60deg
CRN2-1-LSCS-EDMV-SO-W_3500K_60deg_120W3500 K80 CRI18100 lm154117 W60deg
CRN2-1-LSCS-EDMV-SO-W_3500K_60deg_150W3500 K80 CRI21900 lm146150 W60deg
CRN2-1-LSCS-EDMV-SO-W_3500K_80deg_100W3500 K80 CRI15800 lm16993 W80deg
CRN2-1-LSCS-EDMV-SO-W_3500K_80deg_120W3500 K80 CRI18700 lm168111 W80deg
CRN2-1-LSCS-EDMV-SO-W_3500K_80deg_150W3500 K80 CRI23200 lm162143 W80deg
CRN2-1-LSCS-EDMV-SO-W_3500K_100deg_100W3500 K80 CRI15200 lm16095 W100deg
CRN2-1-LSCS-EDMV-SO-W_3500K_100deg_120W3500 K80 CRI18100 lm154117 W100deg
CRN2-1-LSCS-EDMV-SO-W_3500K_100deg_150W3500 K80 CRI21900 lm146150 W100deg
CRN2-1-LSCS-EDMV-SO-W_4000K_60deg_100W4000 K80 CRI16000 lm17094 W60deg
CRN2-1-LSCS-EDMV-SO-W_4000K_60deg_120W4000 K80 CRI18400 lm158116 W60deg
CRN2-1-LSCS-EDMV-SO-W_4000K_60deg_150W4000 K80 CRI23200 lm162143 W60deg
CRN2-1-LSCS-EDMV-SO-W_4000K_80deg_100W4000 K80 CRI16300 lm17792 W80deg
CRN2-1-LSCS-EDMV-SO-W_4000K_80deg_120W4000 K80 CRI19300 lm178108 W80deg
CRN2-1-LSCS-EDMV-SO-W_4000K_80deg_150W4000 K80 CRI24200 lm175138 W80deg
CRN2-1-LSCS-EDMV-SO-W_4000K_100deg_100W4000 K80 CRI16000 lm17094 W100deg
CRN2-1-LSCS-EDMV-SO-W_4000K_100deg_120W4000 K80 CRI18800 lm167112 W100deg
CRN2-1-LSCS-EDMV-SO-W_4000K_100deg_150W4000 K80 CRI23200 lm162143 W100deg
CRN2-1-LSCS-EDMV-SO-W_5000K_60deg_100W5000 K80 CRI15500 lm16395 W60deg
CRN2-1-LSCS-EDMV-SO-W_5000K_60deg_120W5000 K80 CRI18400 lm158116 W60deg
CRN2-1-LSCS-EDMV-SO-W_5000K_60deg_150W5000 K80 CRI22200 lm150148 W60deg
CRN2-1-LSCS-EDMV-SO-W_5000K_80deg_100W5000 K80 CRI16000 lm17392 W80deg
CRN2-1-LSCS-EDMV-SO-W_5000K_80deg_120W5000 K80 CRI19000 lm169112 W80deg
CRN2-1-LSCS-EDMV-SO-W_5000K_80deg_150W5000 K80 CRI23800 lm167142 W80deg
CRN2-1-LSCS-EDMV-SO-W_5000K_100deg_100W5000 K80 CRI15500 lm16395 W100deg
CRN2-1-LSCS-EDMV-SO-W_5000K_100deg_120W5000 K80 CRI18400 lm158116 W100deg
CRN2-1-LSCS-EDMV-SO-W_5000K_100deg_150W5000 K80 CRI22200 lm150148 W100deg
CRN2-2-LSCS-ED-MV-SO-W_3500K_60deg_150W3500 K80 CRI24000 lm160150 W60deg
CRN2-2-LSCS-ED-MV-SO-W_3500K_60deg_200W3500 K80 CRI30000 lm150200 W60deg
CRN2-2-LSCS-ED-MV-SO-W_3500K_60deg_240W3500 K80 CRI34600 lm144239 W60deg
CRN2-2-LSCS-ED-MV-SO-W_3500K_80deg_150W3500 K80 CRI24800 lm169146 W80deg
CRN2-2-LSCS-ED-MV-SO-W_3500K_80deg_200W3500 K80 CRI32000 lm164195 W80deg
CRN2-2-LSCS-ED-MV-SO-W_3500K_80deg_240W3500 K80 CRI36200 lm162223 W80deg
CRN2-2-LSCS-ED-MV-SO-W_3500K_100deg_150W3500 K80 CRI24000 lm160150 W100deg
CRN2-2-LSCS-ED-MV-SO-W_3500K_100deg_200W3500 K80 CRI30000 lm150200 W100deg
CRN2-2-LSCS-ED-MV-SO-W_3500K_100deg_240W3500 K80 CRI34200 lm144236 W100deg
CRN2-2-LSCS-ED-MV-SO-W_4000K_60deg_150W4000 K80 CRI25000 lm170147 W60deg
CRN2-2-LSCS-ED-MV-SO-W_4000K_60deg_200W4000 K80 CRI32000 lm164194 W60deg
CRN2-2-LSCS-ED-MV-SO-W_4000K_60deg_240W4000 K80 CRI36500 lm160228 W60deg
CRN2-2-LSCS-ED-MV-SO-W_4000K_80deg_150W4000 K80 CRI25300 lm178142 W80deg
CRN2-2-LSCS-ED-MV-SO-W_4000K_80deg_200W4000 K80 CRI33000 lm174189 W80deg
CRN2-2-LSCS-ED-MV-SO-W_4000K_80deg_240W4000 K80 CRI38500 lm175220 W80deg
CRN2-2-LSCS-ED-MV-SO-W_4000K_100deg_150W4000 K80 CRI25000 lm170147 W100deg
CRN2-2-LSCS-ED-MV-SO-W_4000K_100deg_200W4000 K80 CRI32000 lm164194 W100deg
CRN2-2-LSCS-ED-MV-SO-W_4000K_100deg_240W4000 K80 CRI36200 lm160226 W100deg
CRN2-2-LSCS-ED-MV-SO-W_5000K_60deg_150W5000 K80 CRI24500 lm163150 W60deg
CRN2-2-LSCS-ED-MV-SO-W_5000K_60deg_200W5000 K80 CRI30500 lm153199 W60deg
CRN2-2-LSCS-ED-MV-SO-W_5000K_60deg_240W5000 K80 CRI35200 lm154228 W60deg
CRN2-2-LSCS-ED-MV-SO-W_5000K_80deg_150W5000 K80 CRI25000 lm172145 W80deg
CRN2-2-LSCS-ED-MV-SO-W_5000K_80deg_200W5000 K80 CRI32200 lm165194 W80deg
CRN2-2-LSCS-ED-MV-SO-W_5000K_80deg_240W5000 K80 CRI37800 lm167226 W80deg
CRN2-2-LSCS-ED-MV-SO-W_5000K_100deg_150W5000 K80 CRI24500 lm163150 W100deg
CRN2-2-LSCS-ED-MV-SO-W_5000K_100deg_200W5000 K80 CRI30500 lm153199 W100deg
CRN2-2-LSCS-ED-MV-SO-W_5000K_100deg_240W5000 K80 CRI35600 lm148239 W100deg
Show All
