COLUMBIA LIGHTING
CNW

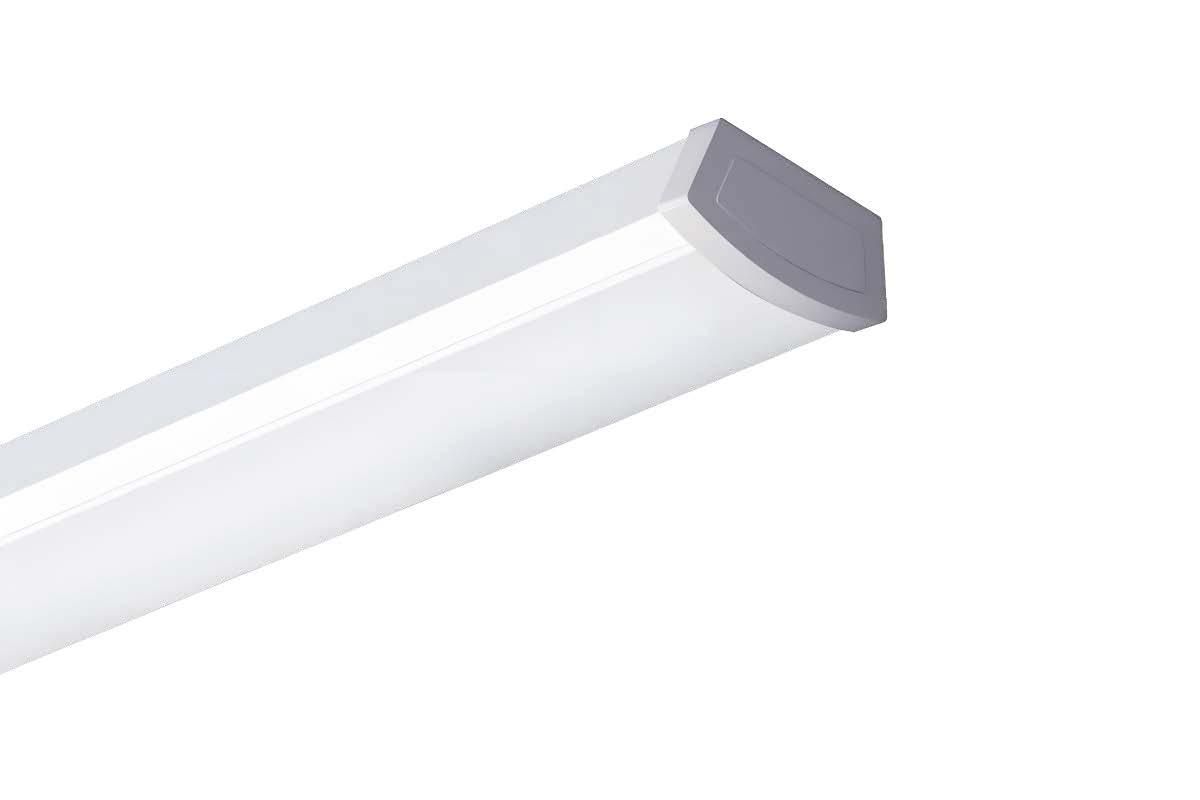

The CNW is a 4' narrow wrap with decorative end caps and a polished look. It features a frosted acrylic lens and comes fully assembled for quick installation.

Features & Benefits

  • For use in a wide range of surface mount ceiling and wall applications
  • Switchable Lumen and Switchable CCT Technology
  • Acrylic lens for superior efficiency and resistance to UV aging
  • High efficacy Up to 150 lumens per watt
  • Universal Voltage (120-347V)
  • 0-10V dimming to 10%
  • Field installable microwave sensor kit accessory available
  • DLC® (DesignLights Consortium) Qualified
Where To Buy
SPEC SHEET

Specifications

Product Technology
Switchable Technology
Lumen Range
4,250 - 5,200
Dimming Protocol
0-10V Dimming
CCT
3000, 3500, 4000, 5000
CRI
80
Switchable Technology
Switchable CCT;Switchable Lumen
Mounting Options
Ceiling, Surface, Wall
Wattage Range
32.5 - 41
Efficacy
136 - 150
Color Offering
White
Beam Angle
Lambertian
Certifications
ETL, ADA, DLC 5.1 Standard
Warranty
5 year limited
Material
Steel housing and polycarbonate end caps

Product Documents

CNW Specification Sheet
1744 KB
2026-02-19

Technical Documents

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
CNW4-A-LSCS_4250lm_3000K3000 K80 CRI4599 lm138.1081081081081333.3 W
CNW4-A-LSCS_4250lm_3500K3500 K80 CRI4741 lm145.4294478527607232.6 W
CNW4-A-LSCS_4250lm_4000K4000 K80 CRI4822 lm150.2180685358255532.1 W
CNW4-A-LSCS_4250lm_5000K5000 K80 CRI4837 lm145.2552552552552633.3 W
CNW4-A-LSCS_4700lm_3000K3000 K80 CRI4991 lm135.62536.8 W
CNW4-A-LSCS_4700lm_3500K3500 K80 CRI5164 lm143.047091412742436.1 W
CNW4-A-LSCS_4700lm_4000K4000 K80 CRI5247 lm147.8028169014084535.5 W
CNW4-A-LSCS_4700lm_5000K5000 K80 CRI5241 lm142.0325203252032536.9 W
CNW4-A-LSCS_5200lm_3000K3000 K80 CRI5401 lm133.029556650246340.6 W
CNW4-A-LSCS_5200lm_3500K3500 K80 CRI5606 lm141.2090680100755539.7 W
CNW4-A-LSCS_5200lm_4000K4000 K80 CRI5697 lm146.0769230769230739 W
CNW4-A-LSCS_5200lm_5000K5000 K80 CRI5682 lm139.606879606879640.7 W
