COLUMBIA LIGHTING

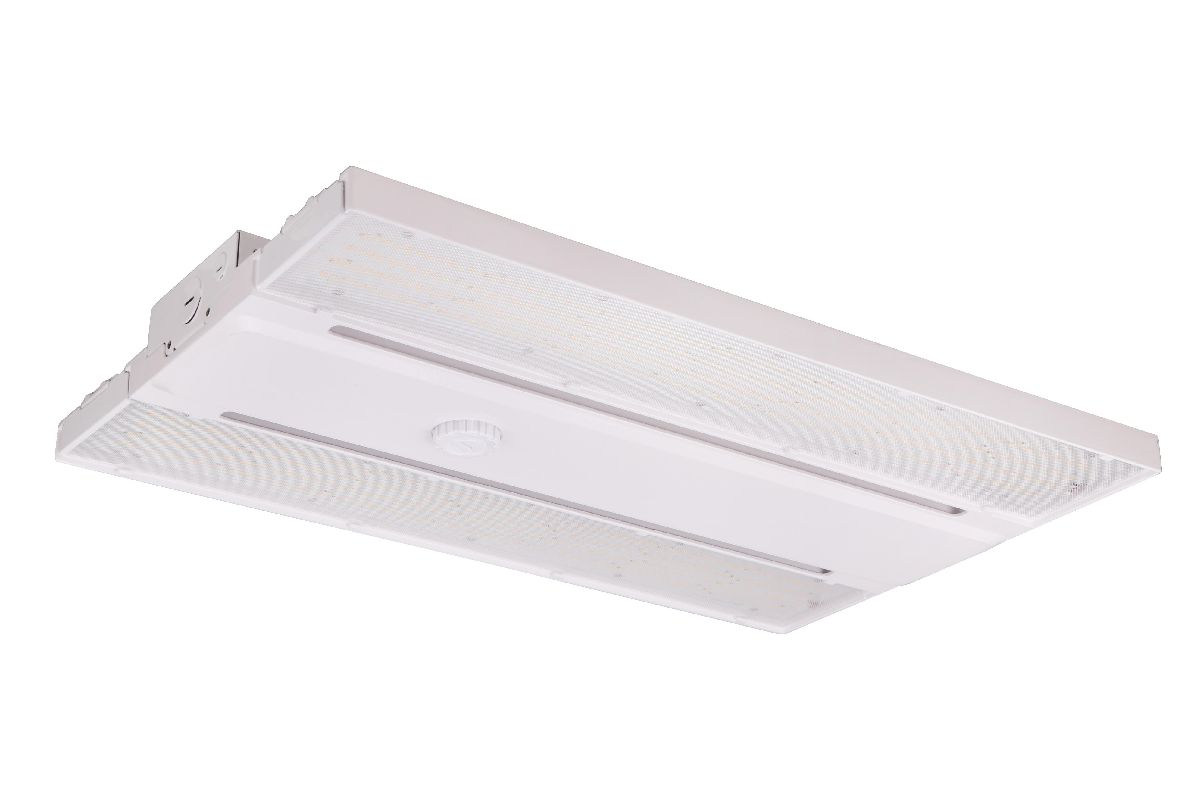

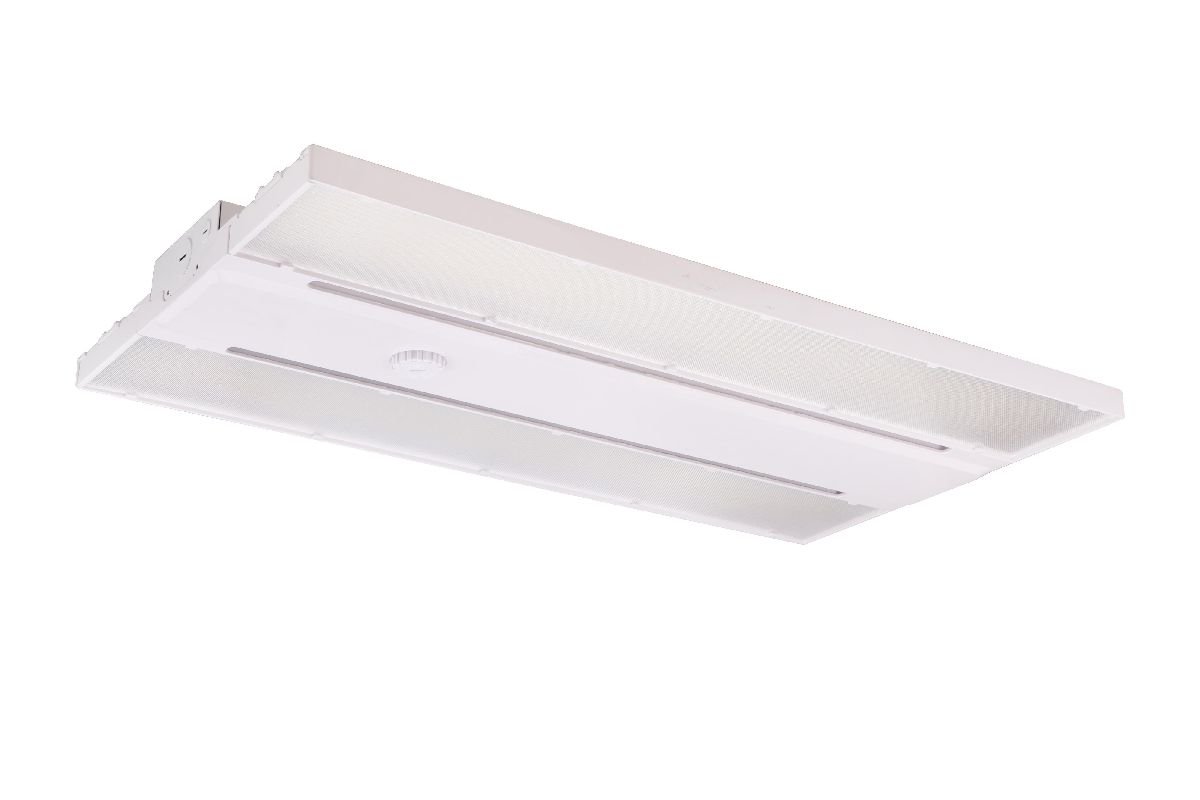

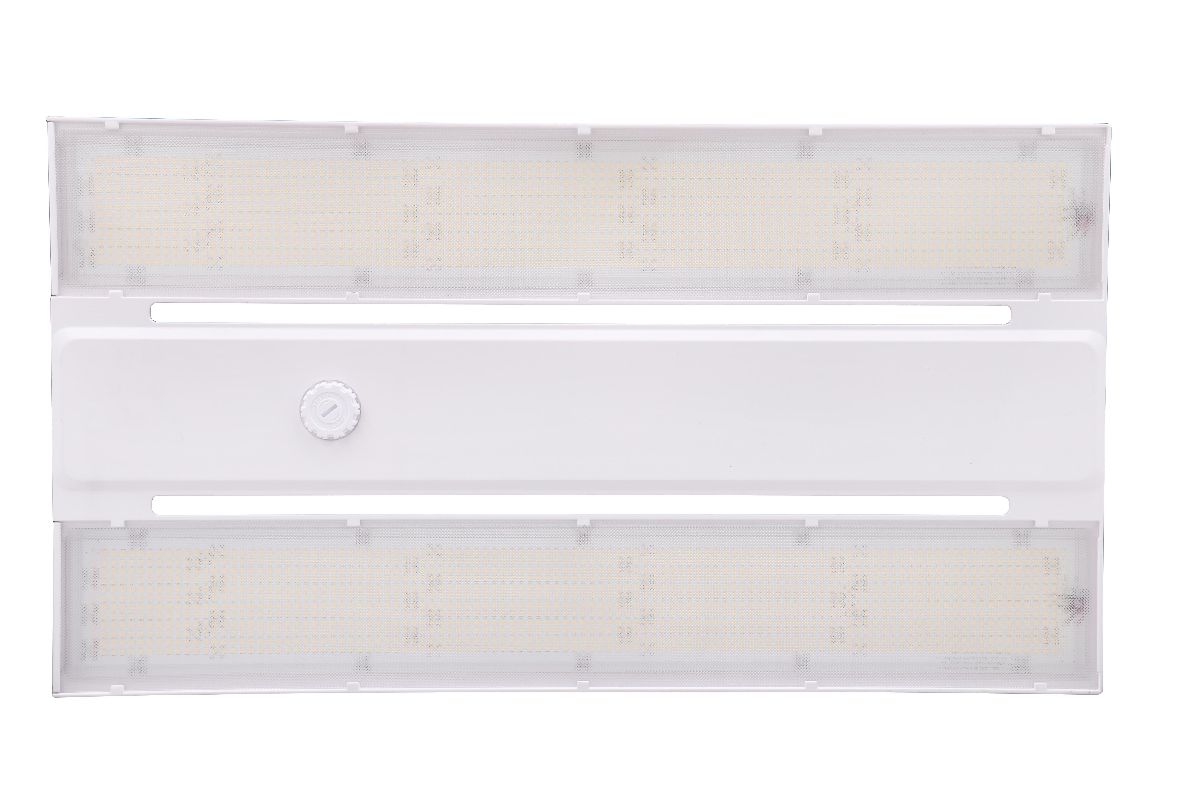

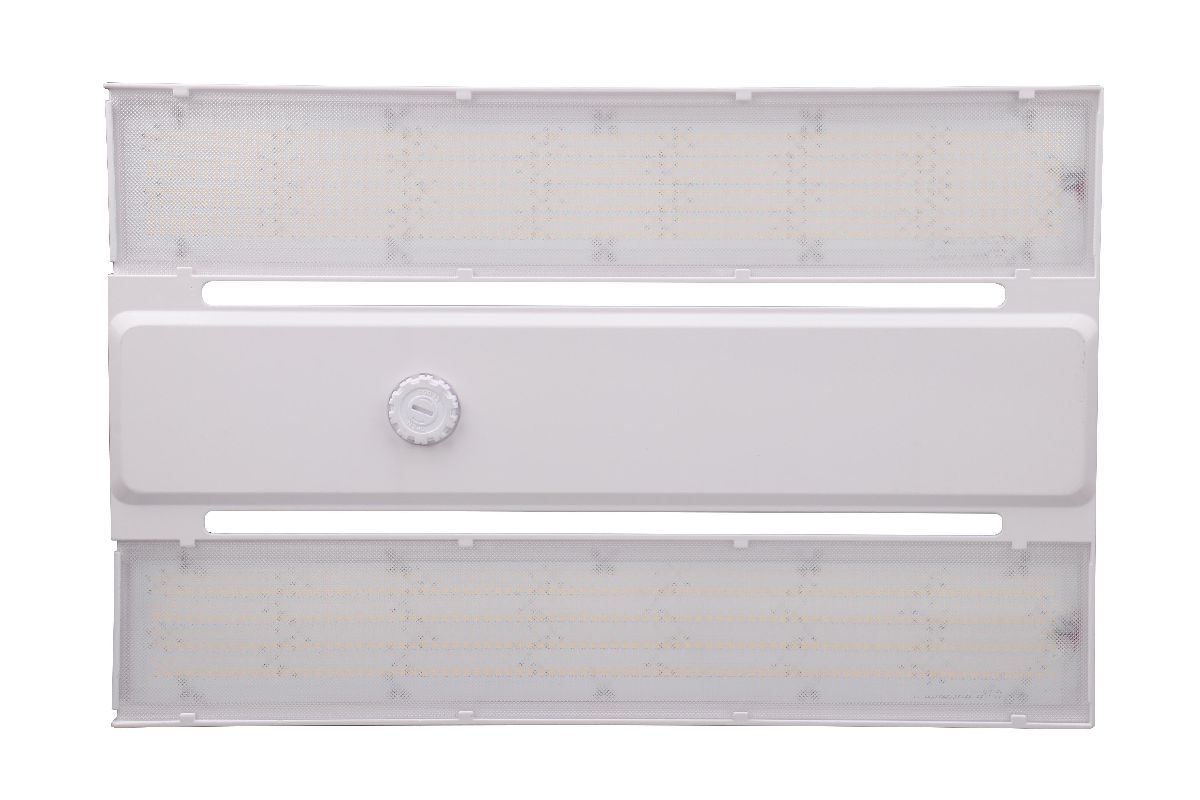

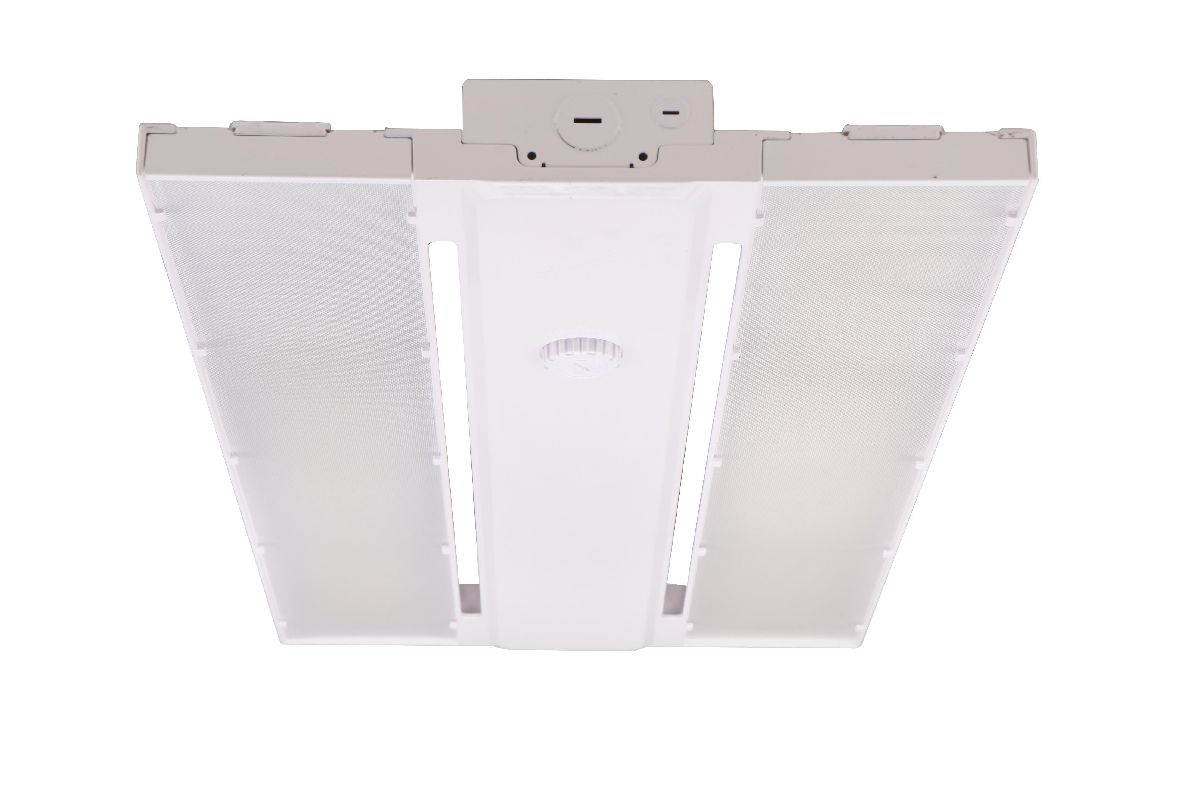

CLH-LSCS

The CLH-LSCS linear high bay is offered with ready-to-ship stock options as well as factory integrated options including NX Lighting controls to maximize project flexibility.

Features & Benefits

  • Ideal for warehouses and industrial applications.

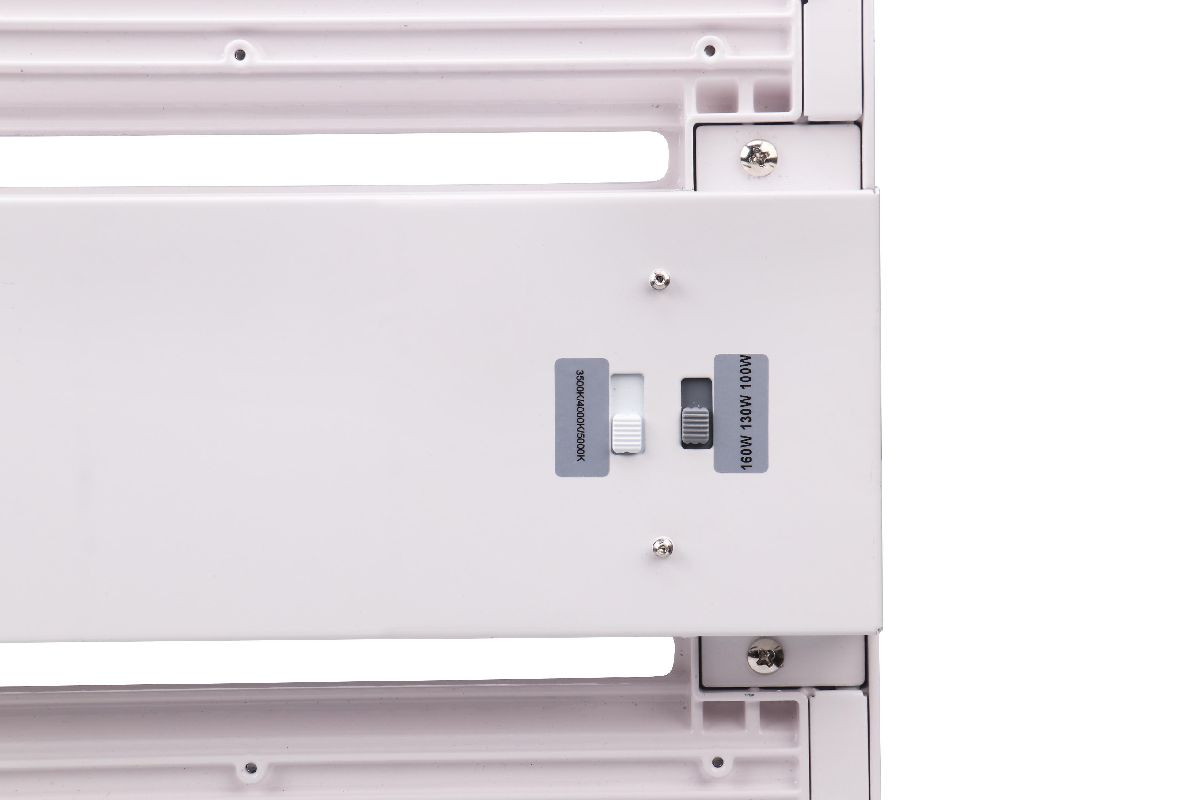

  • Field Switchable Lumen and CCT technologies maximize inventory versatility and flexibility.
  • A universal voltage (120-347V) driver with 0-10V dimming to 10% provides great light output control.
  • Medium lens standard on tradeSELECT, with optional factory installed Narrow, Medium, or Wide distributions made-to-order configurations.
  • Field installable PIR sensor available on tradeSELECT stock configurations. Factory integrated NX Wired and Wireless solutions available on made-to-order configurations.
  • Excellent thermal management in a compact fixture provides a wide ambient temperature application range: -40°C to +50 °C.
Where To Buy
SPEC SHEET

Specifications

Coverage Area
Wide;Medium;Narrow
Lumen Range
16,000 - 36,000
Dimming Protocol
0-10V Dimming to 10%
CCT
3500, 4000, 5000
CRI
80
Switchable Technology
Switchable CCT;Switchable Lumen
Mounting Options
Cable, Surface, Pendant
Material - Housing
Die-Cast Aluminum
Wattage Range
108 - 255
Efficacy
132 - 155
Color Offering
White
Certifications
UL
Ratings
IK08 Lens, IK10 Housing, Damp
Operating Temperature
-40-50
Lumen Maintenance Rating
L70/100,000
Warranty
5 Years
Controls Platform
Independent Control, NX Connect, NX Networked - Wired, NX Networked - Wireless
Material
Steel

Product Documents

Brochures / Catalogs

CUR_HLI_Industrial_Brochure
62011 KB
2024-11-25

Sell Sheets

Technical Documents

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
CLH1-LSCS-EDU-MD_24000lm_5000K5000 K80 CRI24200 lm153158.3 WMedium (90°)
CLH2-LSCS-EDU-MD_36000lm_5000K5000 K80 CRI36100 lm149242 WMedium (90°)
CLH2-LSCS-EDU-MD_24000lm_4000K4000 K80 CRIMedium (90°)
CLH2-LSCS-EDU-MD_24000lm_5000K5000 K80 CRI24000 lm158152.3 WMedium (90°)
CLH2-LSCS-EDU-MD_30000lm_4000K4000 K80 CRIMedium (90°)
CLH2-LSCS-EDU-MD_30000lm_5000K5000 K80 CRI30300 lm154196.8 WMedium (90°)
CLH2-LSCS-EDU-MD_36000lm_4000K4000 K80 CRIMedium (90°)
CLH2-LSCS-EDU-ND_24000lm_4000K4000 K80 CRINarrow (55°)
CLH2-LSCS-EDU-ND_24000lm_5000K5000 K80 CRI24400 lm162150.8 WNarrow (55°)
CLH2-LSCS-EDU-ND_30000lm_4000K4000 K80 CRINarrow (55°)
CLH2-LSCS-EDU-ND_30000lm_5000K5000 K80 CRI30400 lm157193.5 WNarrow (55°)
CLH2-LSCS-EDU-ND_36000lm_4000K4000 K80 CRINarrow (55°)
CLH2-LSCS-EDU-ND_36000lm_5000K5000 K80 CRI35600 lm152233.9 WNarrow (55°)
CLH2-LSCS-EDU-WD_24000lm_4000K4000 K80 CRIWide (120°)
CLH2-LSCS-EDU-WD_24000lm_5000K5000 K80 CRI25000 lm164152.6 WWide (120°)
CLH2-LSCS-EDU-WD_30000lm_4000K4000 K80 CRIWide (120°)
CLH2-LSCS-EDU-WD_30000lm_5000K5000 K80 CRI31400 lm161195.4 WWide (120°)
CLH2-LSCS-EDU-WD_36000lm_4000K4000 K80 CRIWide (120°)
CLH2-LSCS-EDU-WD_36000lm_5000K5000 K80 CRI36900 lm156236.6 WWide (120°)
CLH1-LSCS-EDU-MD_15000lm_4000K4000 K80 CRIMedium (90°)
CLH1-LSCS-EDU-MD_15000lm_5000K5000 K80 CRI15000 lm15994.4 WMedium (90°)
CLH1-LSCS-EDU-MD_18000lm_4000K4000 K80 CRIMedium (90°)
CLH1-LSCS-EDU-MD_18000lm_5000K5000 K80 CRI18000 lm157114.8 WMedium (90°)
CLH1-LSCS-EDU-MD_24000lm_4000K4000 K80 CRIMedium (90°)
CLH1-LSCS-EDU-ND_15000lm_4000K4000 K80 CRINarrow (55°)
CLH1-LSCS-EDU-ND_15000lm_5000K5000 K80 CRI16200 lm16896.7 WNarrow (55°)
CLH1-LSCS-EDU-ND_18000lm_4000K4000 K80 CRINarrow (55°)
CLH1-LSCS-EDU-ND_18000lm_5000K5000 K80 CRI19300 lm164117.8 WNarrow (55°)
CLH1-LSCS-EDU-ND_24000lm_4000K4000 K80 CRINarrow (55°)
CLH1-LSCS-EDU-ND_24000lm_5000K5000 K80 CRI24600 lm157157.2 WNarrow (55°)
CLH1-LSCS-EDU-WD_15000lm_4000K4000 K80 CRIWide (120°)
CLH1-LSCS-EDU-WD_15000lm_5000K5000 K80 CRI16100 lm16995.5 WWide (120°)
CLH1-LSCS-EDU-WD_18000lm_4000K4000 K80 CRIWide (120°)
CLH1-LSCS-EDU-WD_18000lm_5000K5000 K80 CRI19200 lm165116.2 WWide (120°)
CLH1-LSCS-EDU-WD_24000lm_4000K4000 K80 CRIWide (120°)
CLH1-LSCS-EDU-WD_24000lm_5000K5000 K80 CRI24800 lm160155.1 WWide (120°)
