LITECONTROL

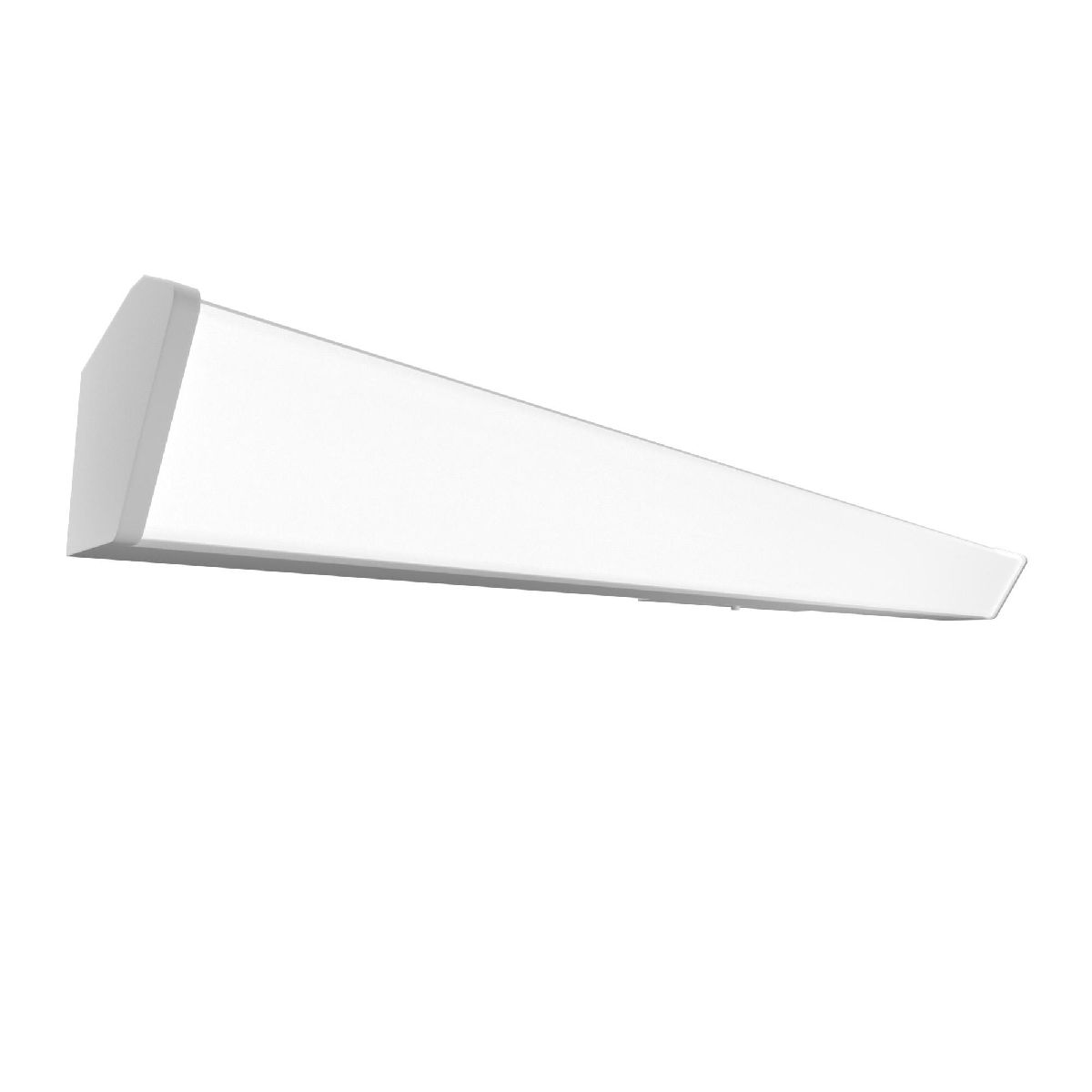

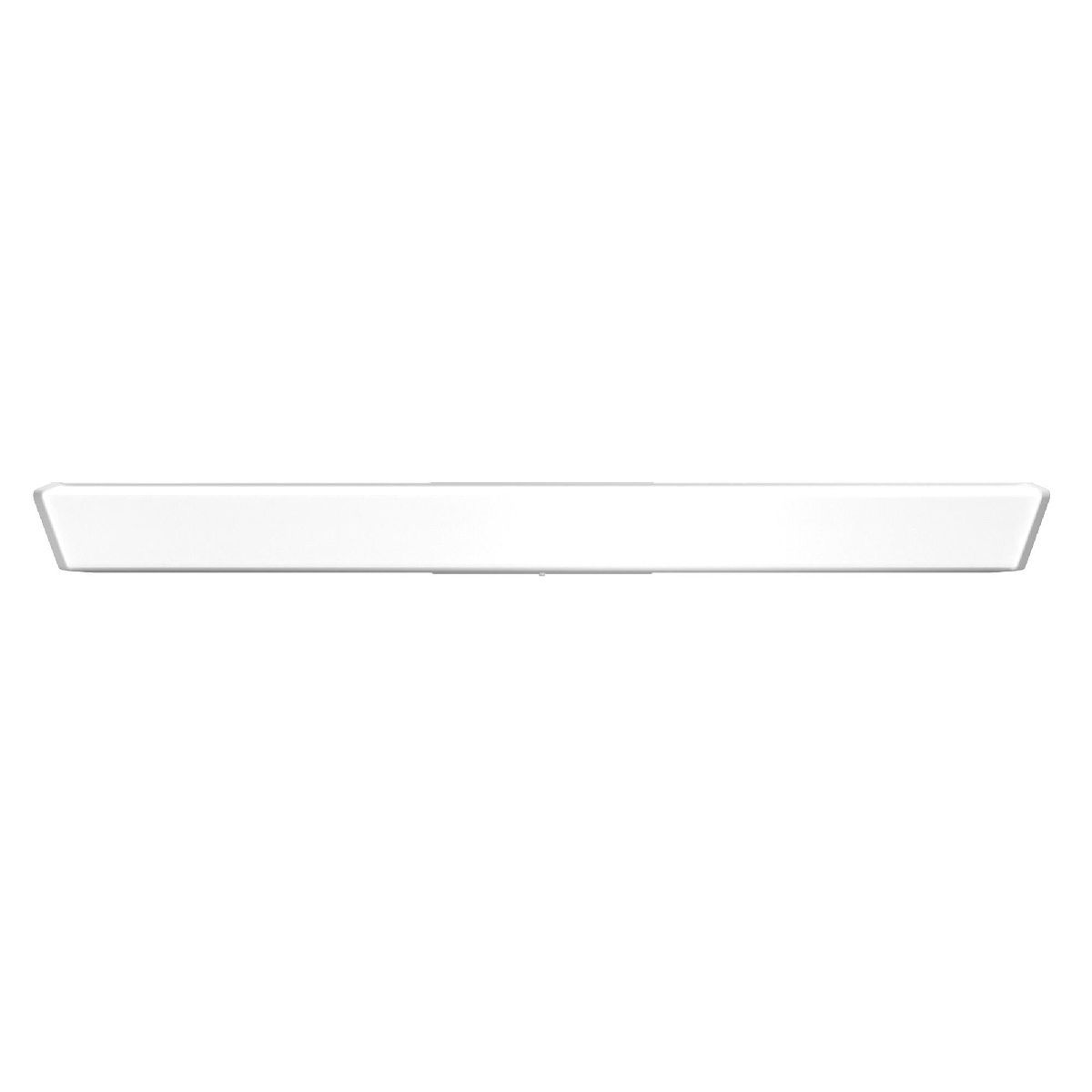

Aira Wall Sconce

Aira Wall Sconce complements the design elements of the Aira pendant and wall, including luminous corner options for creation of patterns as well as coordinating housing and end cap finishes to enhance the palette of your space while being ADA Compliant.
BAA_Compliant_Icon

Features & Benefits

  • Low profile, ADA compliant
  • Semi-Direct (25 up / 75 down) asymmetric distribution
  • Integral driver, battery options for ease of contractor installation

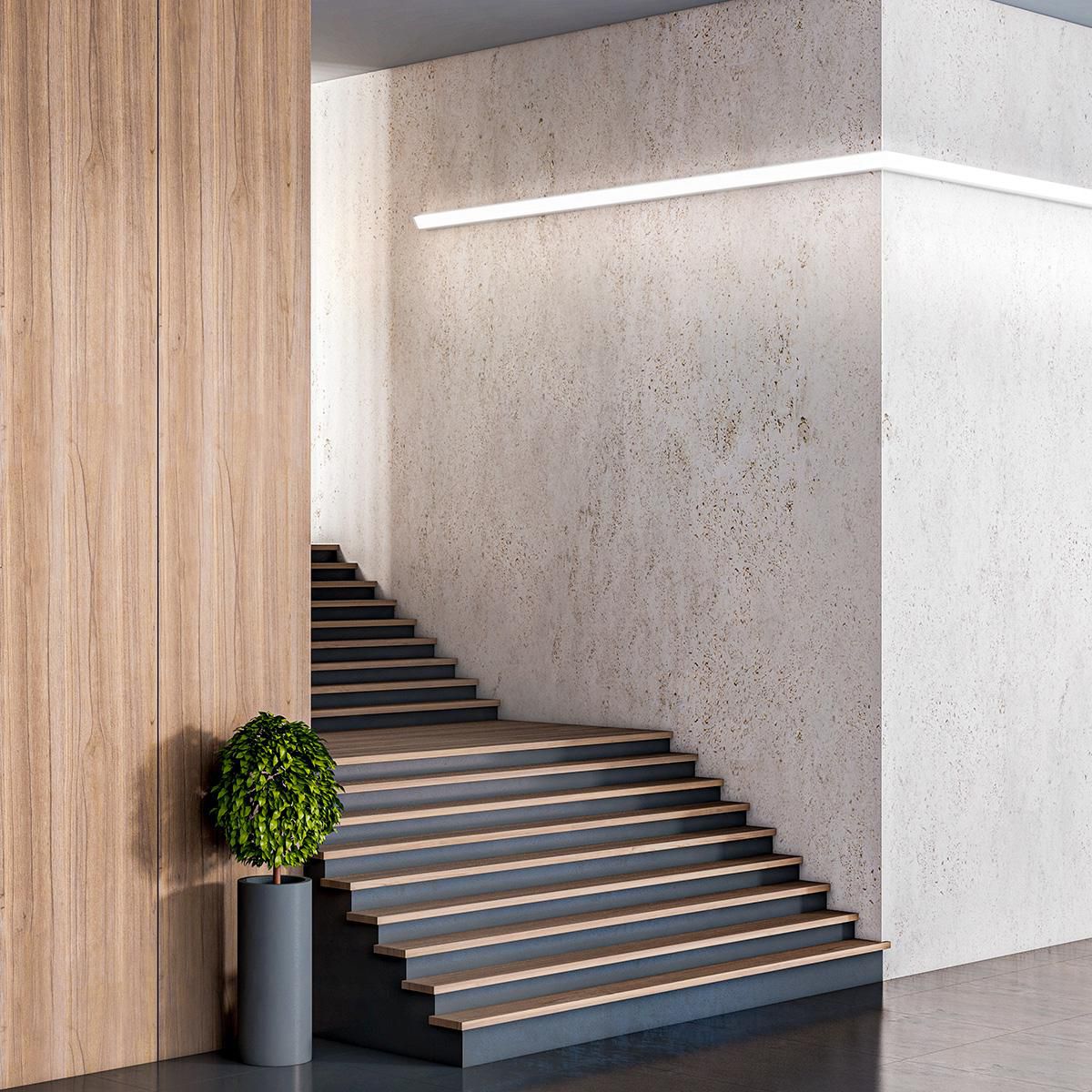

  • Complementary luminous connectors allows for seamless transition around corners

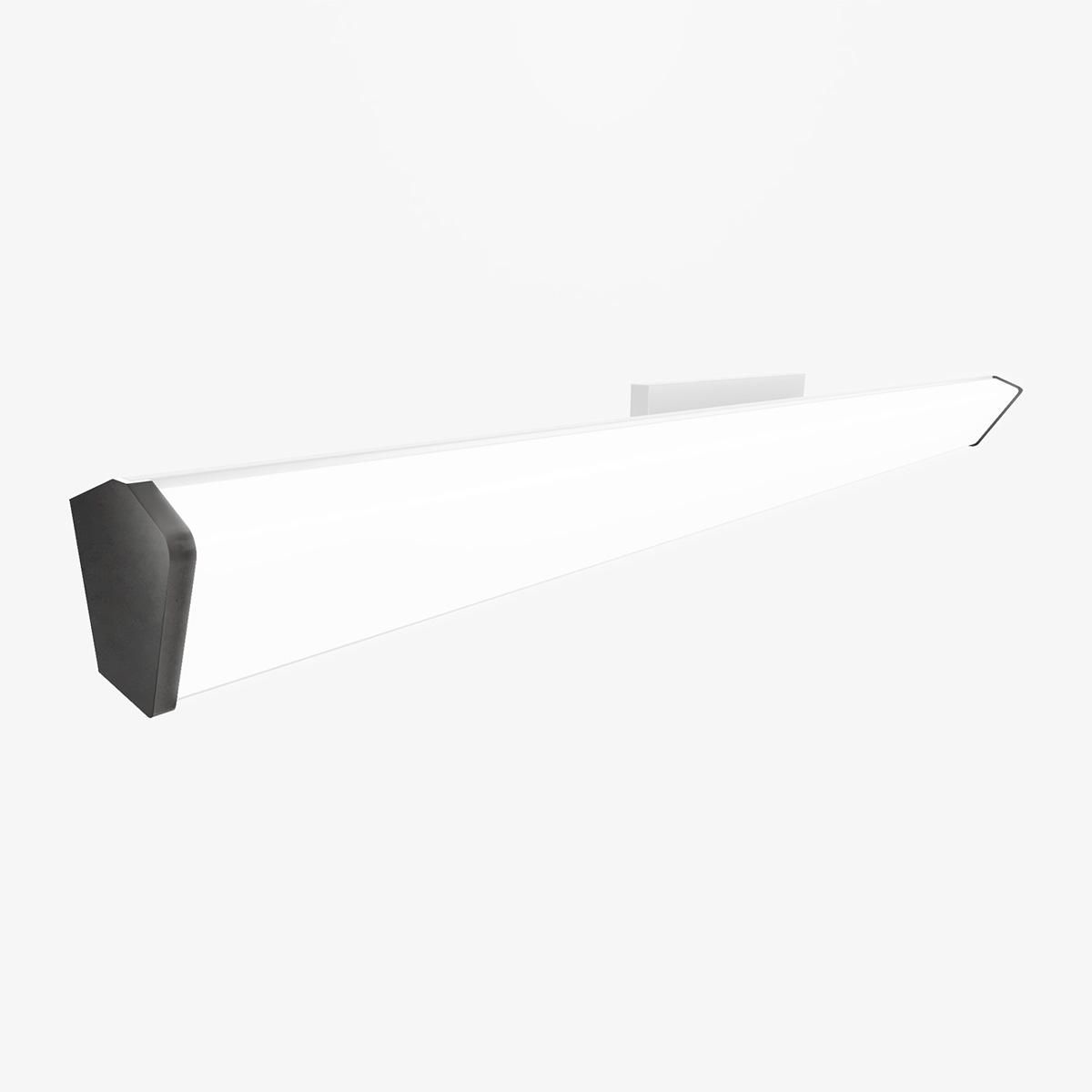

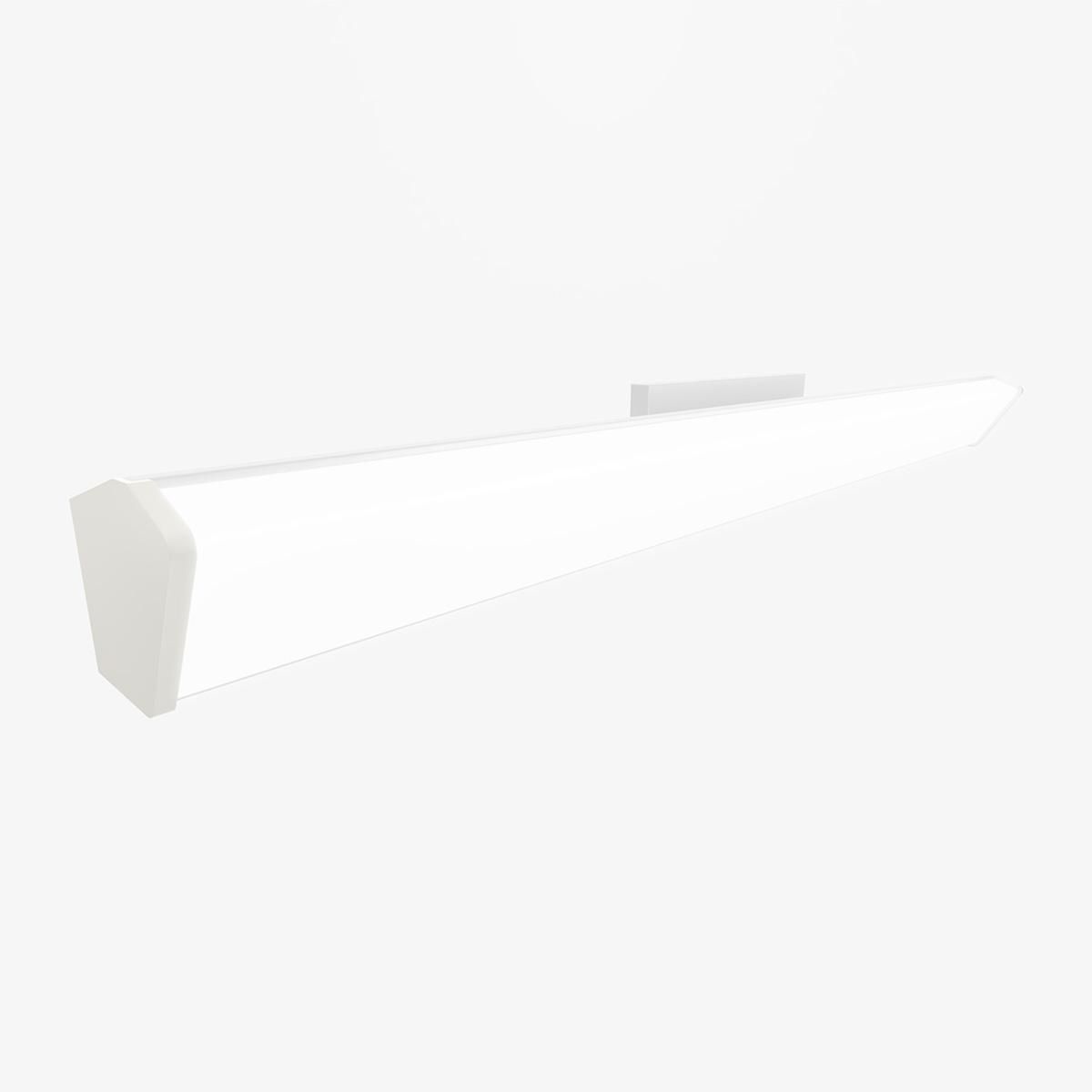

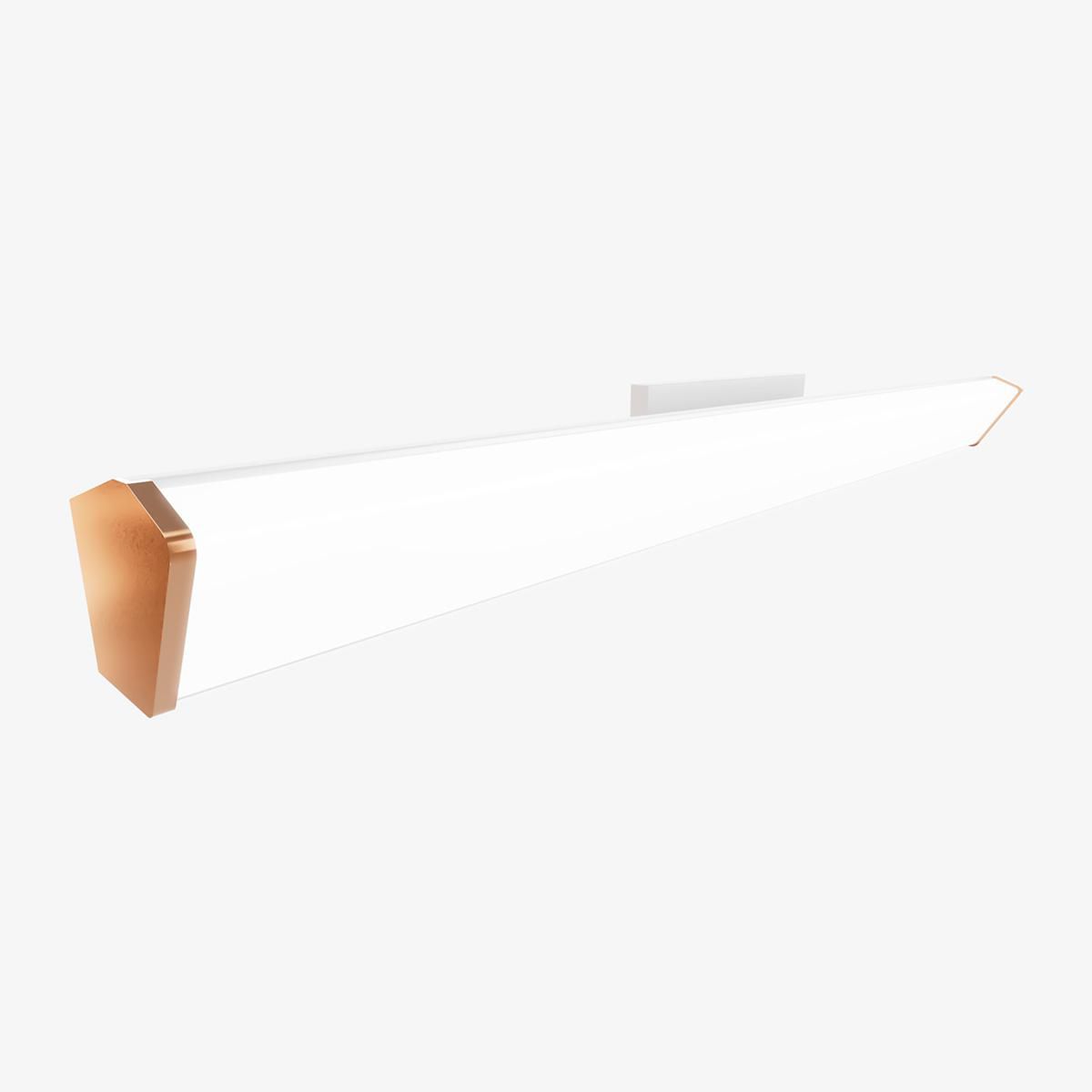

  • End caps are finished to specification to complement the palette of your space
Where To Buy
SPEC SHEET

Specifications

Product Technology
TriGain
Lumen Range
150-1,000
Dimming Protocol
0-10V Dimming, NX Networked
Mounting Options
Wall
Certifications
UL 1598, UL 924, DLC 5.1 Standard
Ratings
ADA, BAA (Buy American 52.225-9), damp, IBEW, AF of L
Controls Platform
NX Networked - Wireless
Wattage
1.4-8.6

Product Documents

Brochures / Catalogs

Aira Brochure
15888 KB
2024-05-09

Sell Sheets

Design / BIM Files / 3D Models

Aira Wall Sconce BIM Files
442 KB
2025-05-14

Technical Documents

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
AIRA-SW-SD-LPA-4-SOF-35K9-SD0153500 K90 CRI600 lm1046 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0203500 K90 CRI800 lm1097 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0253500 K90 CRI1000 lm1129 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0303500 K90 CRI1200 lm11411 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0353500 K90 CRI1400 lm11612 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0403500 K90 CRI1600 lm11614 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0453500 K90 CRI1800 lm11715 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0503500 K90 CRI2000 lm11717 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0553500 K90 CRI2200 lm11819 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0603500 K90 CRI2400 lm11820 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0653500 K90 CRI2600 lm11822 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0703500 K90 CRI2800 lm11824 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0753500 K90 CRI3000 lm11826 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0803500 K90 CRI3200 lm11727 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0853500 K90 CRI3400 lm11729 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0903500 K90 CRI3600 lm11731 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD0953500 K90 CRI3800 lm11733 WSemi-Direct
AIRA-SW-SD-LPA-4-SOF-35K9-SD1003500 K90 CRI4000 lm11634 WSemi-Direct
Show All
